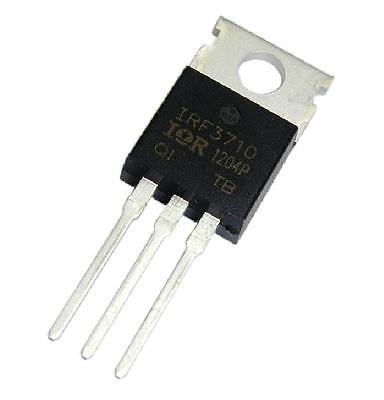

The IRF3710 is an N-channel power MOSFET designed for high-power applications requiring efficient switching and robust performance. With a high current rating and low on-resistance, this MOSFET is ideal for use in power supplies, motor control, and various other high-power circuits.
Key Features:
- N-channel enhancement mode MOSFET
- High voltage rating: 100V
- High current rating: 57A
- Low on-resistance for efficient switching
- Fast switching speed
- Rugged and reliable construction
- Suitable for high-frequency applications
- Type: N-channel MOSFET
- Drain-Source Voltage (Vds): 100V
- Continuous Drain Current (Id): 57A
- Pulsed Drain Current (Id, Pulse): 230A
- Gate-Source Voltage (Vgs): ±20V
- Rds(on): 0.020Ω (maximum) at Vgs = 10V
- Total Gate Charge (Qg): 160nC (typical)
- Gate-Source Threshold Voltage (Vgs(th)): 2.0V - 4.0V
- Power Dissipation (Pd): 200W
- Operating Temperature Range: -55°C to +175°C
- Package Type: TO-220
- Switched-mode power supplies (SMPS)
- Motor control circuits
- Inverters and converters
- High-power DC-DC converters
- Load switches
- Audio amplifiers
- Power management systems
- Connect the drain terminal to the high-voltage load.
- Connect the source terminal to the ground or low-side of the circuit.
- Apply a suitable gate voltage (Vgs) to control the switching operation.
- Use a gate resistor if needed to control the switching speed and reduce noise.
- Ensure proper heat sinking to manage power dissipation and avoid overheating.
- Handle the MOSFET carefully to avoid damage from electrostatic discharge (ESD).
- Verify the voltage and current ratings before use to ensure compatibility with your circuit.
- Ensure adequate cooling and heat dissipation to prevent thermal overload.
