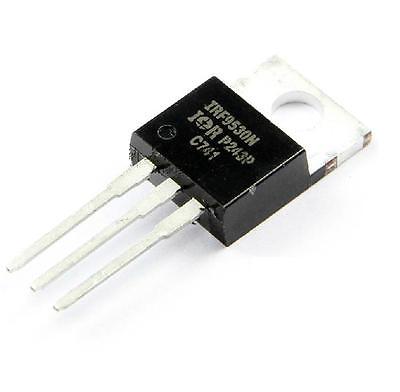

The IRF9530 is a P-channel power MOSFET designed for high-efficiency switching and amplification in various electronic applications. It offers a high current and voltage rating, making it suitable for power supply circuits, motor drivers, and other high-power electronic systems.
Key Features:
- P-channel enhancement mode MOSFET
- High voltage rating: 100V
- High current rating: 12A
- Low on-resistance for efficient switching
- Fast switching speed
- Rugged and reliable construction
- Suitable for high-frequency applications
- Type: P-channel MOSFET
- Drain-Source Voltage (Vds): -100V
- Continuous Drain Current (Id): -12A
- Pulsed Drain Current (Id, Pulse): -48A
- Gate-Source Voltage (Vgs): ±20V
- Rds(on): 0.300Ω (maximum) at Vgs = -10V
- Total Gate Charge (Qg): 59nC (typical)
- Gate-Source Threshold Voltage (Vgs(th)): -2.0V to -4.0V
- Power Dissipation (Pd): 83W
- Operating Temperature Range: -55°C to +175°C
- Package Type: TO-220
- Switched-mode power supplies (SMPS)
- Motor control circuits
- Inverters and converters
- High-voltage DC-DC converters
- Load switches
- Audio amplifiers
- Power management systems
- Connect the drain terminal to the high-side load or power supply.
- Connect the source terminal to the low-side or ground of the circuit.
- Apply a suitable gate voltage (Vgs) to control the switching operation.
- Use a gate resistor if needed to control the switching speed and reduce noise.
- Ensure proper heat sinking to manage power dissipation and avoid overheating.
- Handle the MOSFET carefully to avoid damage from electrostatic discharge (ESD).
- Verify the voltage and current ratings before use to ensure compatibility with your circuit.
- Ensure adequate cooling and heat dissipation to prevent thermal overload.
