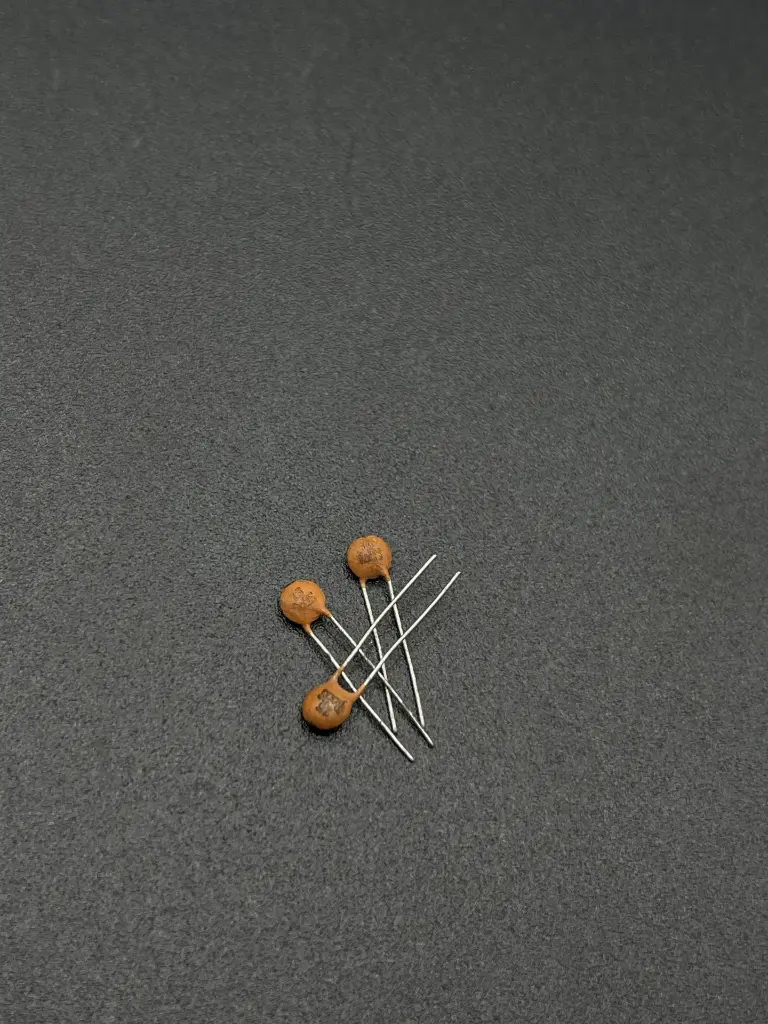

15000pf 15nf 0.015uf ceramic capacitor

https://www.hub360.cc/web/image/product.template/10719/image_1920?unique=32986b9
(0 review)
10 sold in last 24 hours

₦ 41.86 41.86 NGN ₦ 41.86 Tax Excluded

₦ 45.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
10 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us

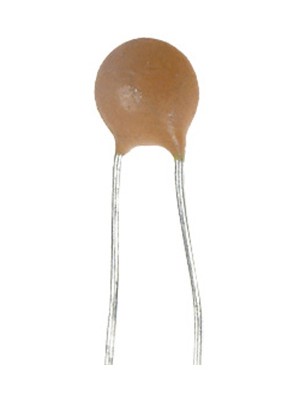

The 15000pF (15nF, 0.015μF) ceramic capacitor is a high-quality, reliable component designed for a variety of electronic circuits and applications. Known for its stable performance and low cost, this capacitor is widely used in filtering, coupling, and decoupling applications. Key Features:
  • Capacitance value: 15000pF (15nF, 0.015μF)
  • Stable performance with low loss
  • High dielectric strength
  • Low equivalent series resistance (ESR)
  • Small size and lightweight
  • High reliability and long lifespan
  • Suitable for high-frequency applications
Technical Specifications:
  • Capacitance: 15000pF (15nF, 0.015μF)
  • Tolerance: ±10% (can vary by manufacturer)
  • Voltage Rating: 50V to 500V (depending on specific model)
  • Dielectric Material: X7R, C0G, or Y5V (depending on specific model)
  • Temperature Coefficient: Varies by dielectric material (e.g., X7R: ±15% over -55°C to +125°C)
  • Operating Temperature Range: -55°C to +125°C
  • Package Type: Radial or SMD (Surface Mount Device)
Applications:
  • Bypass and decoupling capacitors in power supply circuits
  • Filtering in signal processing circuits
  • Coupling and decoupling in audio and RF circuits
  • Timing and frequency control in oscillators and timers
  • General-purpose use in analog and digital circuits
Usage:
  1. Identify the polarity (if any) and the correct orientation for installation.
  2. Insert the capacitor into the appropriate location on the PCB (Printed Circuit Board).
  3. Solder the capacitor leads or pads to the PCB, ensuring a secure and reliable connection.
  4. Trim any excess leads if using a through-hole type capacitor.
Caution:
  • Verify the voltage rating and capacitance value before use to ensure compatibility with your circuit.
  • Handle with care to avoid damaging the capacitor body or leads.
  • Follow proper soldering techniques to prevent overheating and damaging the capacitor.
Datasheet: For detailed technical specifications, refer to the 15000pF (15nF, 0.015μF) Ceramic Capacitor Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
