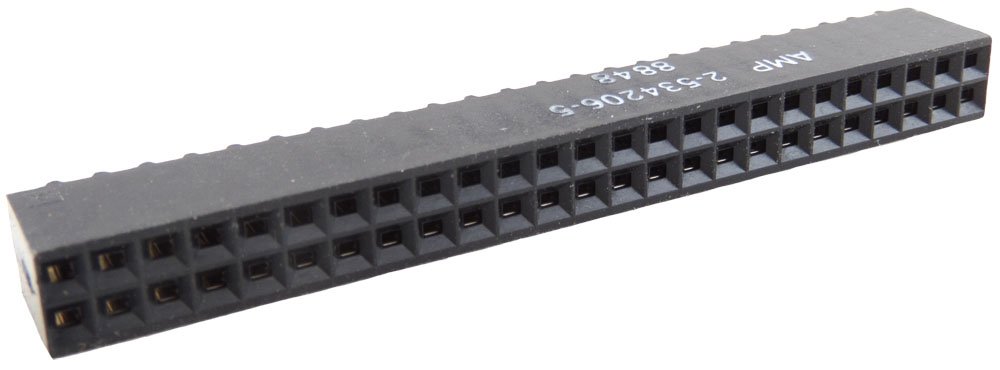

The 40 Pin Dual In Line (DIL) 2.54mm Female Header is a type of connector commonly used in electronics for creating connections between circuit boards or between a board and external components. It features 40 pins arranged in a dual in-line configuration with a pitch of 2.54mm (0.1 inches), allowing for easy interfacing with standard male headers or other components.
Key Features:
- Connector Type: Dual In Line (DIL) female header.
- Pin Pitch: 2.54mm (0.1 inches), which is standard for many electronic applications.
- Number of Pins: 40 pins.
- Contact Material: Typically brass or phosphor bronze for good conductivity and durability.
- Mounting Type: PCB mount.
- Applications: Ideal for connecting PCBs, modules, or other electronic components in various projects and applications.
- Pitch: 2.54mm (0.1 inches).
- Number of Pins: 40.
- Contact Material: Brass or phosphor bronze.
- Plating: Gold or tin-plated for corrosion resistance.
- Current Rating: Depends on wire gauge and terminal rating.
- Usage: Designed for PCB-to-PCB connections or interfacing with components.
