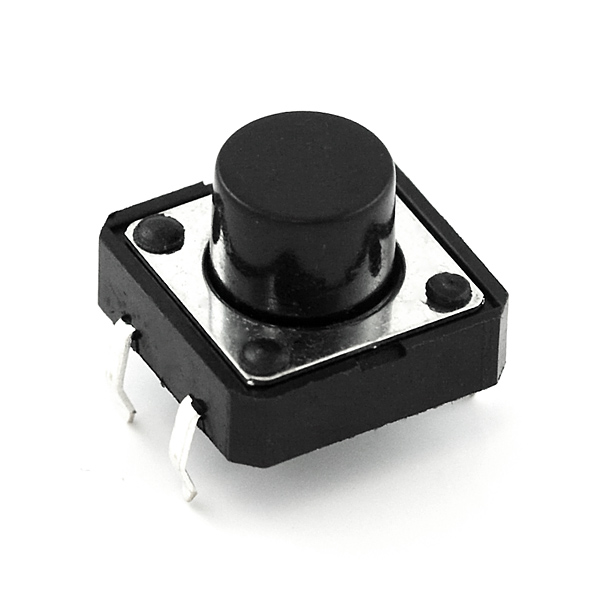

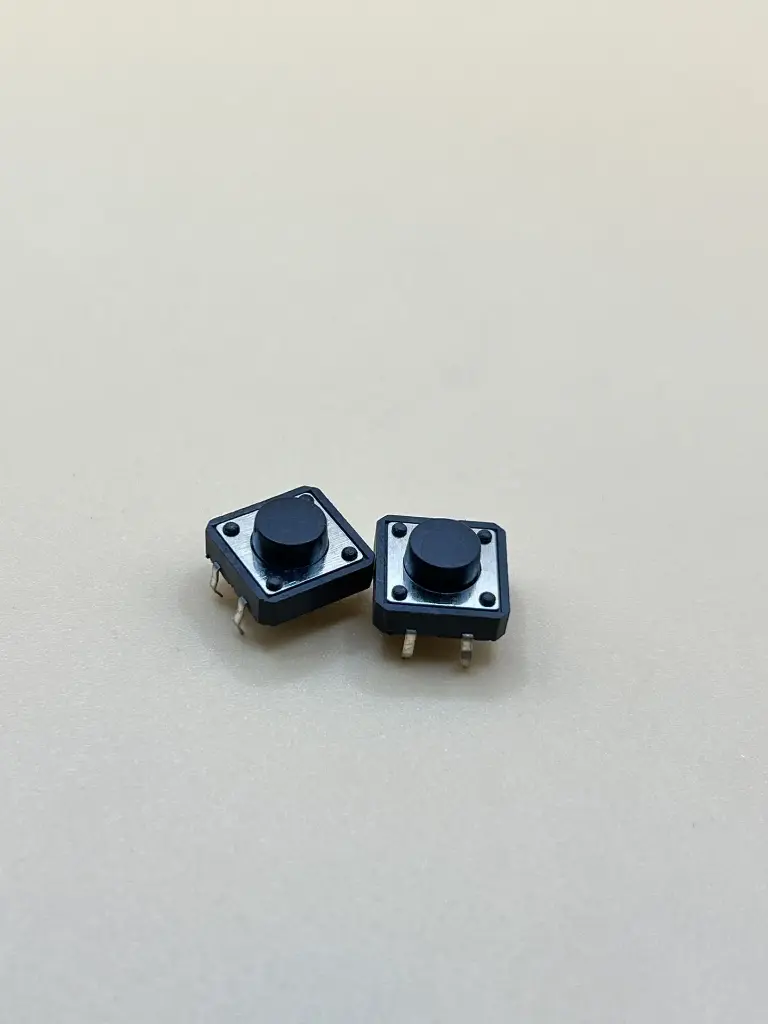

The Tact Switch 12x12x6 is a compact, surface-mount tactile switch designed for a variety of electronic applications. With a dimension of 12x12 mm and a height of 6 mm, it offers a tactile feedback mechanism that provides a noticeable click when pressed. This switch is widely used in consumer electronics, keyboards, and control panels due to its reliability and ease of integration.
Key Features:
- Size: 12x12 mm (length x width)
- Height: 6 mm
- Actuation Force: Typically around 160-200 g (varies by model)
- Contact Type: Momentary, normally open (NO)
- Tactile Feedback: Provides a distinct click sound and feel when pressed
- Mounting Type: Surface mount (SMT)
- Durability: Designed for a high number of actuations
- Dimensions:
- Length x Width: 12 mm x 12 mm
- Height: 6 mm
- Actuation Force: 160-200 g (varies by manufacturer)
- Contact Rating:
- Voltage: 12V DC (typical)
- Current: 50 mA (typical)
- Contact Resistance: Typically 100 ohms or less
- Insulation Resistance: Typically 100 MΩ or more
- Durability: Up to 1,000,000 cycles (varies by manufacturer)
- Operating Temperature: -20°C to +70°C
- Consumer Electronics: Used in devices like remote controls, keyboards, and calculators.
- Control Panels: Ideal for control panels and user interfaces requiring tactile feedback.
- Prototyping: Commonly used in electronic prototypes and development boards.
- Embedded Systems: Suitable for integration into various embedded systems requiring user input.
