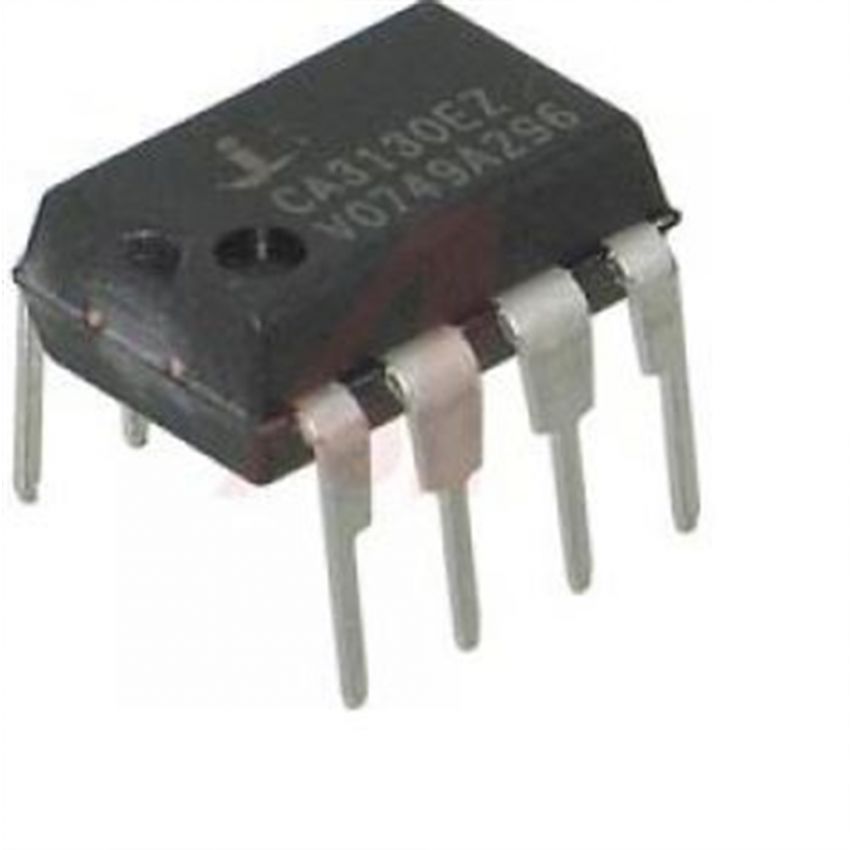

The CA3130 is a high-performance operational amplifier designed for use in precision analog applications. It features a unique JFET-input stage that provides high input impedance, low bias currents, and low offset voltage. This op-amp is suitable for use in signal processing, analog filtering, and other high-accuracy electronic circuits.
Key Features:
- Input Type: JFET-input
- High Input Impedance: Low input bias current and offset voltage
- Low Offset Voltage: Ensures precision in signal amplification
- Wide Bandwidth: Suitable for high-frequency applications
- Low Noise: Minimizes signal noise for accurate measurements
- High Slew Rate: Fast response to changes in input signal
- Dimensions:
- Package Type: Dual In-line Package (DIP-8)
- Length x Width: Typically 9.0 mm x 4.8 mm
- Weight: Approximately 1 g
- Supply Voltage:
- Single Supply: ±5V to ±15V
- Dual Supply: ±15V (typical)
- Input Offset Voltage: Typically 0.5 mV
- Input Bias Current: Typically 10 pA
- Open-Loop Voltage Gain: Typically 100 dB
- Slew Rate: 13 V/µs
- Bandwidth: Unity gain bandwidth of 2 MHz
- Total Harmonic Distortion (THD): Low distortion for clean signal amplification
- Signal Processing: Used in circuits requiring precise signal amplification and processing.
- Analog Filtering: Ideal for active filter designs in audio and signal processing.
- Measurement Systems: Suitable for precision measurement and instrumentation.
- High-Fidelity Audio: Used in audio circuits for high-quality signal reproduction.
- Medical Equipment: Employed in medical devices requiring accurate signal amplification.
