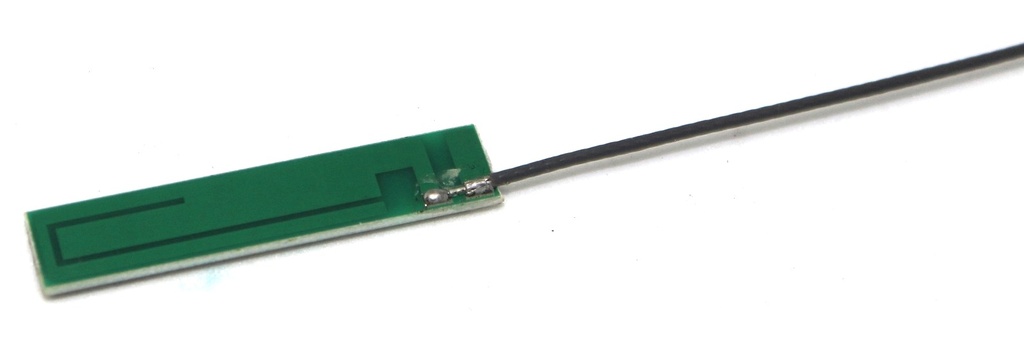

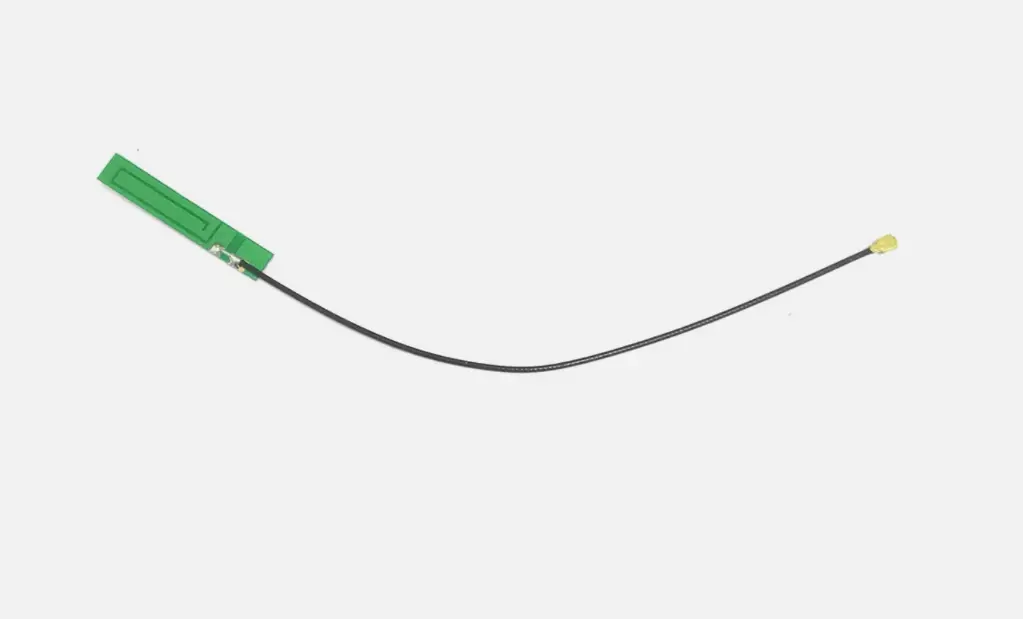

The GSM/GPS/3G PCB Antenna is a compact and integrated antenna designed for use in GSM, GPS, and 3G communication systems. It is typically mounted directly onto a printed circuit board (PCB) and is used to provide reliable wireless connectivity across these frequency bands. Its PCB-based design allows for easy integration into various electronic devices and systems.
Key Features:
- Frequency Bands: Supports multiple bands for GSM, GPS, and 3G communication
- Design: PCB-mounted for easy integration into circuit boards
- Connector Type: Often comes with built-in connectors or solder pads for direct PCB attachment
- Material: Generally made from high-performance PCB materials with conductive traces
- Frequency Bands:
- GSM: 850 MHz, 900 MHz
- GPS: 1.575 GHz
- 3G: 1900 MHz, 2100 MHz
- Antenna Type: Typically a planar or patch antenna designed for PCB mounting
- Impedance: 50 ohms
- Gain: Varies by design, typically around 2 dBi to 5 dBi
- Polarization: Linear or vertical polarization
- Dimensions: Varies depending on the design and integration needs
- Material: PCB substrate with conductive layers
- Mobile Devices: Used in smartphones and tablets for GSM, GPS, and 3G connectivity.
- Telematics: Applied in telematics systems for tracking and communication.
- Embedded Systems: Ideal for embedded systems requiring integrated wireless communication.
- IoT Devices: Suitable for Internet of Things (IoT) devices needing GSM, GPS, and 3G connectivity.
- Prototyping: Useful for prototypes and development boards integrating multiple communication functions.
