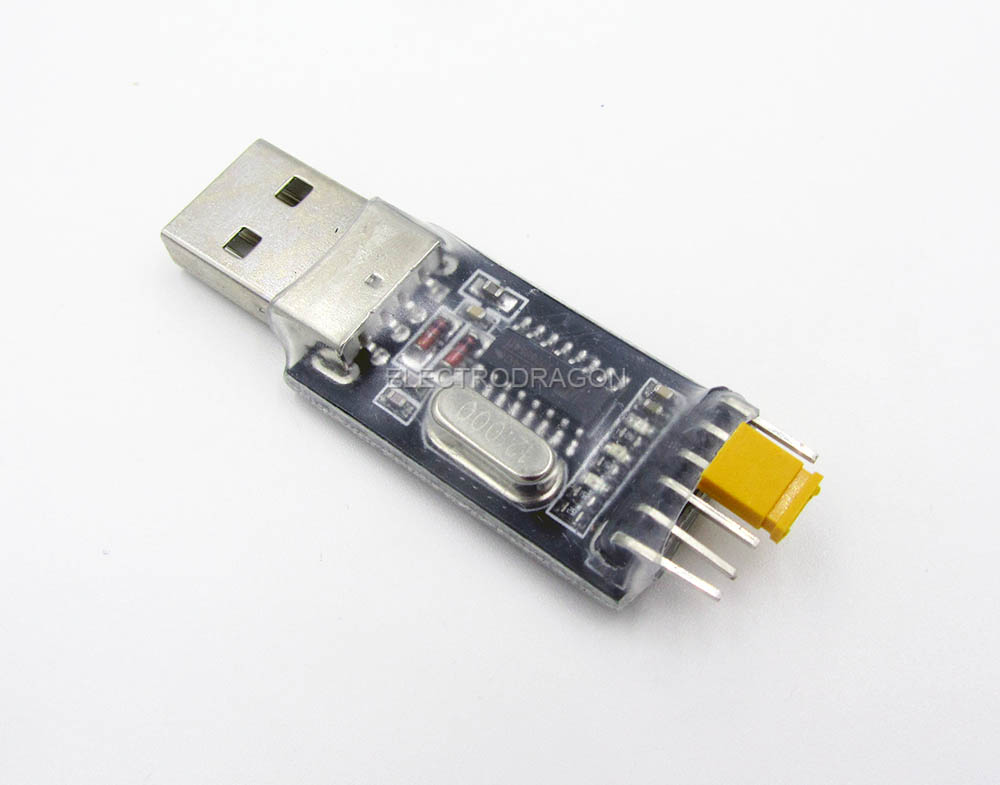

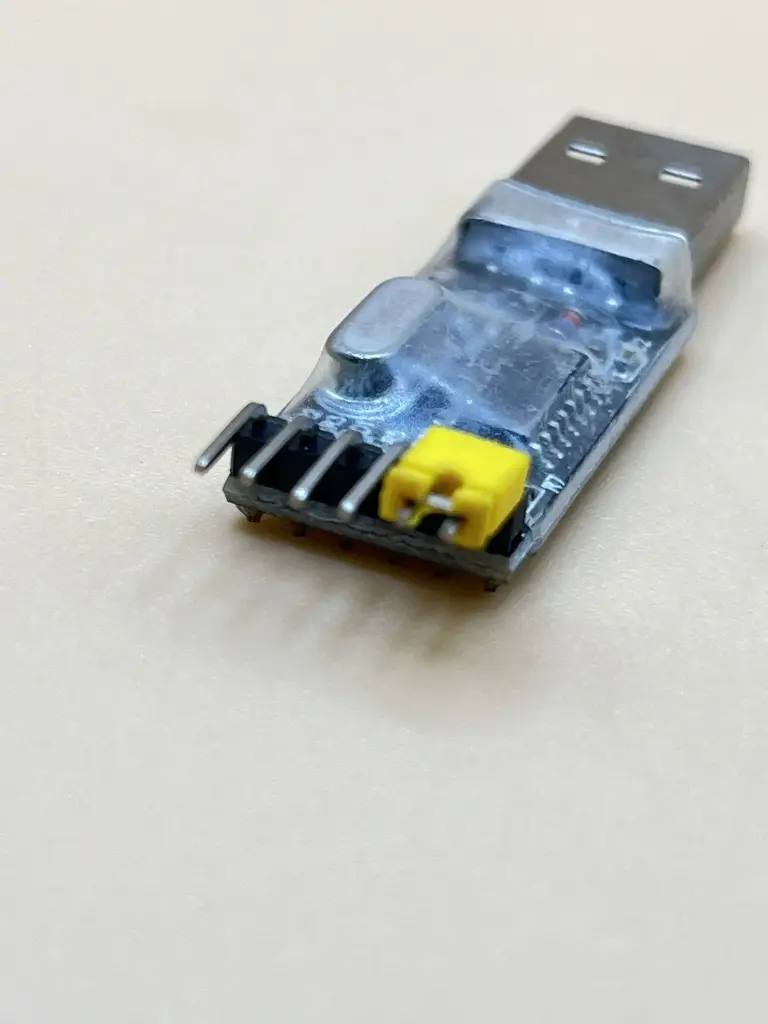

The USB to TTL CH340 is a USB-to-serial converter module that uses the CH340 chip to convert USB signals to TTL (Transistor-Transistor Logic) level serial communication. It is commonly used to interface USB-enabled devices with TTL serial devices such as microcontrollers and development boards. This module provides a cost-effective and reliable solution for connecting TTL serial devices to a USB port on a computer.
Key Features:
- Chip: CH340
- Interface: USB to TTL serial (UART)
- Data Rate: Up to 2 Mbps
- Operating Voltage: 3.3V or 5V TTL levels (configurable)
- Driver Support: Compatible with major operating systems including Windows, macOS, and Linux
- Connector: Typically includes a USB Type-A or Type-B connector and TTL pins (TX, RX, VCC, GND)
- LED Indicators: Often includes LEDs to indicate power and data transmission
- USB Interface: USB 2.0
- TTL Levels: 3.3V or 5V (depends on the module configuration)
- Data Rate: Up to 2 Mbps
- Driver Support: CH340 drivers for Windows, macOS, and Linux
- Pin Configuration:
- TX: Transmit data
- RX: Receive data
- VCC: Power supply (3.3V or 5V)
- GND: Ground
- Power Supply: Powered via USB (typically 5V from USB)
- Microcontroller Programming: Used for programming and debugging microcontrollers that use TTL serial communication.
- Serial Communication: Facilitates communication between USB-equipped computers and serial devices.
- Embedded Systems: Connects embedded systems to PCs for data exchange and control.
- Prototyping: Commonly used in electronic prototypes to bridge the gap between USB and TTL serial interfaces.
