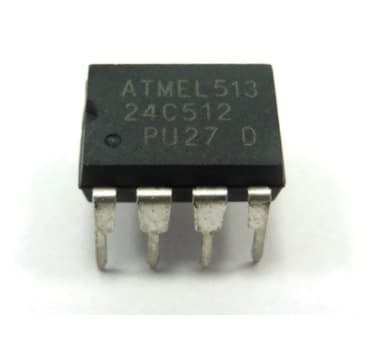

The AT24C512 is a 512-Kbit Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as 65,536 words of 8 bits each. It is a high-density memory device used in a wide range of applications including industrial, automotive, and consumer electronics. The AT24C512 uses an I²C interface for communication, making it easy to integrate into various systems.
Key Features:
- Memory Size: 512 Kbits (64 KB)
- Organization: 65,536 x 8
- Interface: I²C (Inter-Integrated Circuit)
- Operating Voltage: 1.7V to 5.5V
- Data Retention: 100 years
- Endurance: 1,000,000 write cycles
- Access Time: 1 ms (byte write)
- Package Types: Available in several packages including 8-lead SOIC, TSSOP, and PDIP
- Memory: 512 Kbits (64 KB)
- Interface: I²C-compatible (two-wire serial interface)
- Clock Frequency: Up to 1 MHz for Fast-mode Plus (FM+)
- Write Protection: Hardware write protection available via WP pin
- Temperature Range: -40°C to 85°C (industrial grade)
- Package Options: 8-lead SOIC, 8-lead TSSOP, 8-lead PDIP
- Dimensions: Varies by package, e.g., SOIC-8: 5.0 mm x 4.0 mm x 1.5 mm (typical)
- Consumer Electronics: Used in televisions, remote controls, and gaming consoles.
- Industrial Control: Employed in data logging, sensor calibration, and system configuration storage.
- Automotive: Utilized in engine control units, infotainment systems, and other in-vehicle electronics.
- Medical Devices: Stores calibration data and patient information.
- Networking Equipment: Used in routers, switches, and other network devices for configuration settings.
