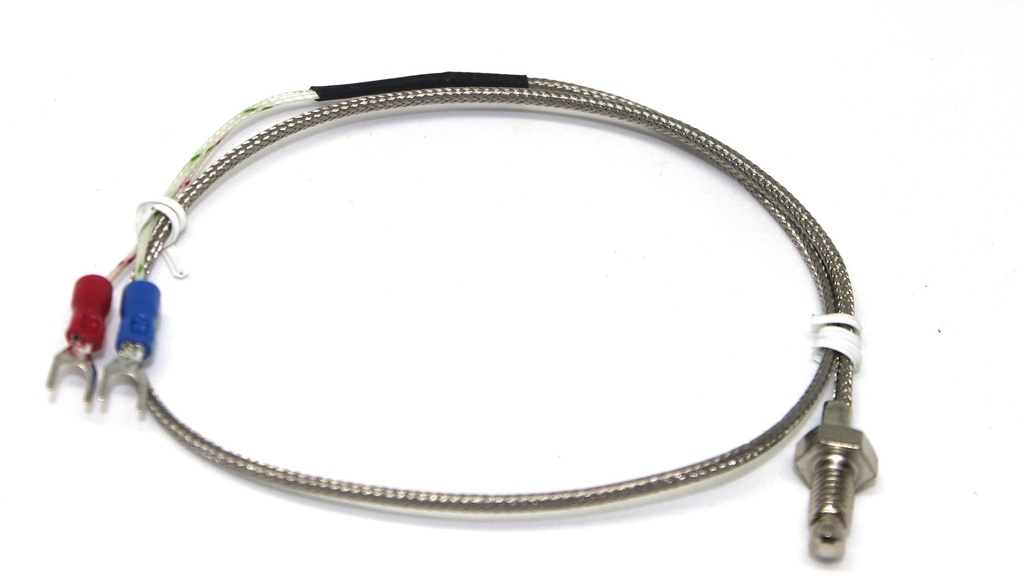

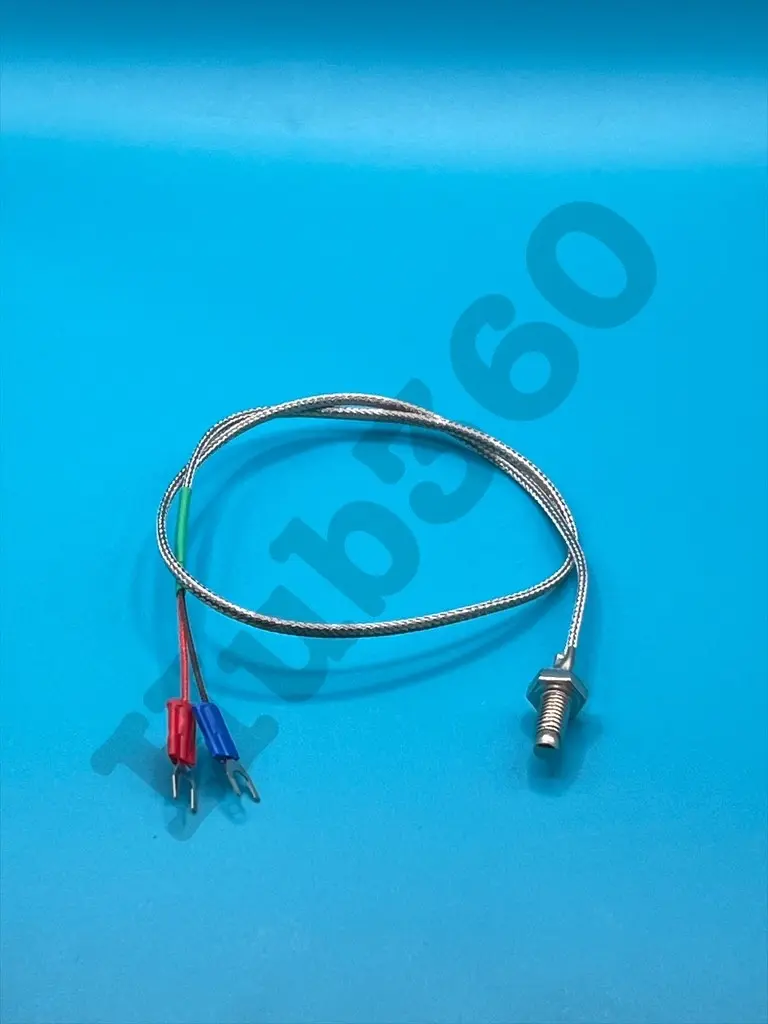

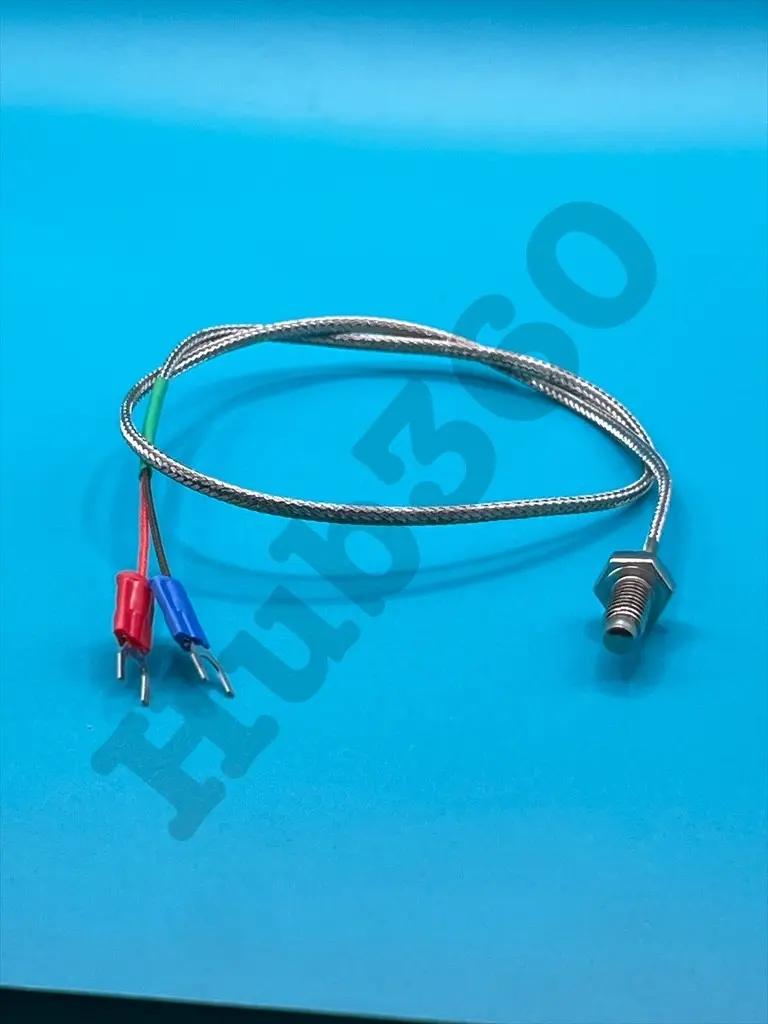

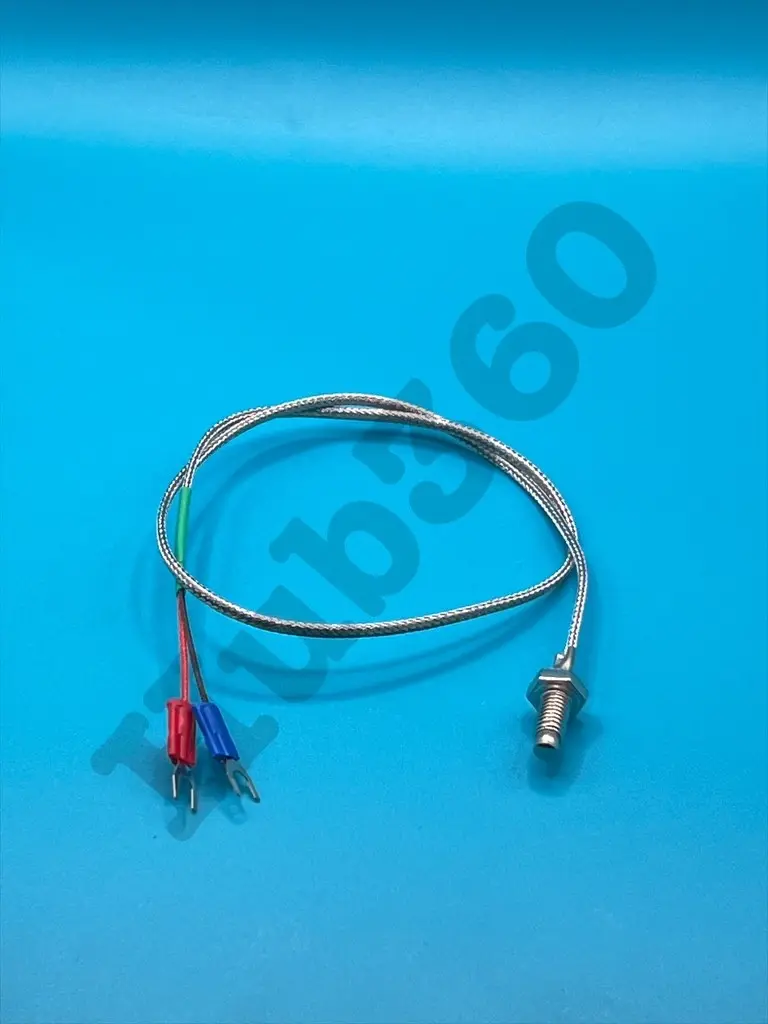

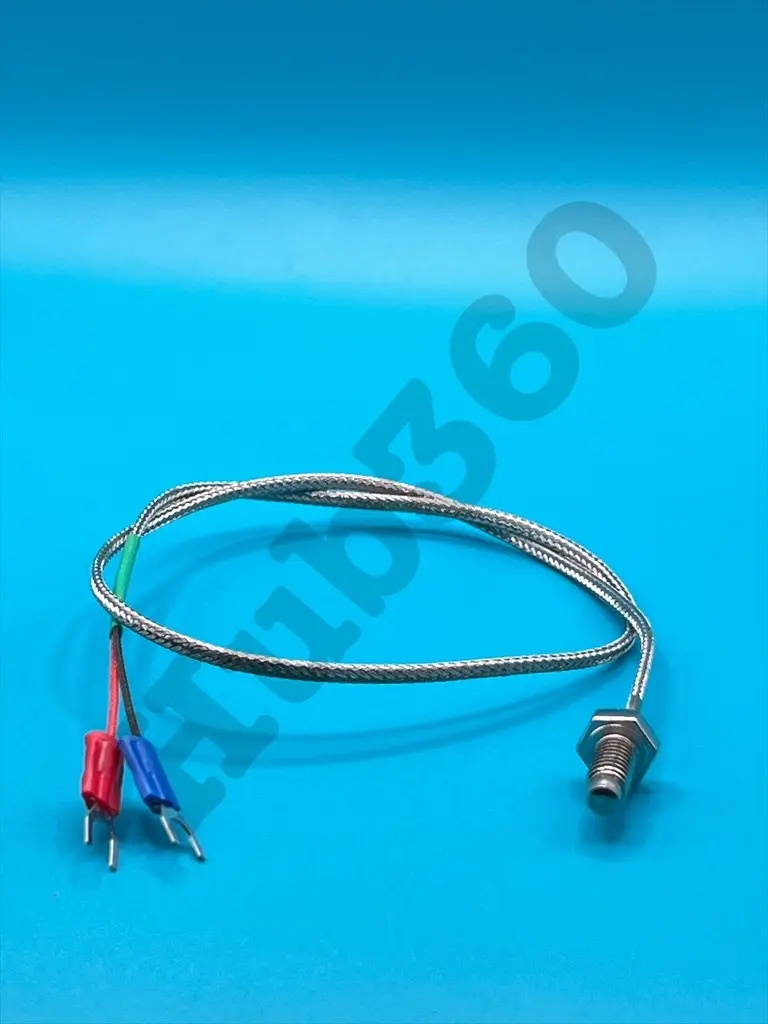

The K-type thermocouple is a widely used temperature sensor made from nickel-chromium/nickel-aluminum (Ni-Cr/Ni-Al) alloys. It is designed to measure temperatures in a range from 0 to 600 degrees Celsius. Known for its versatility and accuracy, the K-type thermocouple is used in various industrial, scientific, and home applications. It provides reliable temperature readings and is suitable for high-temperature environments.
Key Features:
- Temperature Range: 0 to 600°C
- Type: K-type (Ni-Cr/Ni-Al)
- Accuracy: Typically ±1.5°C or ±0.4% of reading (whichever is greater)
- Response Time: Fast response due to small thermal mass
- Durability: Resistant to oxidation and corrosion
- Connection: Often comes with a standard connector (e.g., mini plug or screw terminals)
- Thermocouple Type: K (Nickel-Chromium/Nickel-Aluminum)
- Temperature Range: 0 to 600°C
- Wire Diameter: Varies, commonly 0.5 mm to 1 mm
- Insulation: Fiberglass or ceramic insulation for high-temperature resistance
- Probe Material: Stainless steel or Inconel sheathing
- Length: Varies, common lengths are 1 meter, 2 meters, or custom lengths
- Connector: Standard mini plug or other types as required
- Industrial Processes: Used in furnaces, kilns, and heat-treating applications for monitoring and controlling temperatures.
- Scientific Research: Ideal for laboratory experiments requiring precise temperature measurements.
- HVAC Systems: Used in heating, ventilation, and air conditioning systems to monitor temperature.
- Automotive: Employed in engine testing and other high-temperature automotive applications.
- Home Appliances: Used in ovens, toasters, and other appliances that require temperature control.
