1kg load cell
This content will be shared across all product pages.

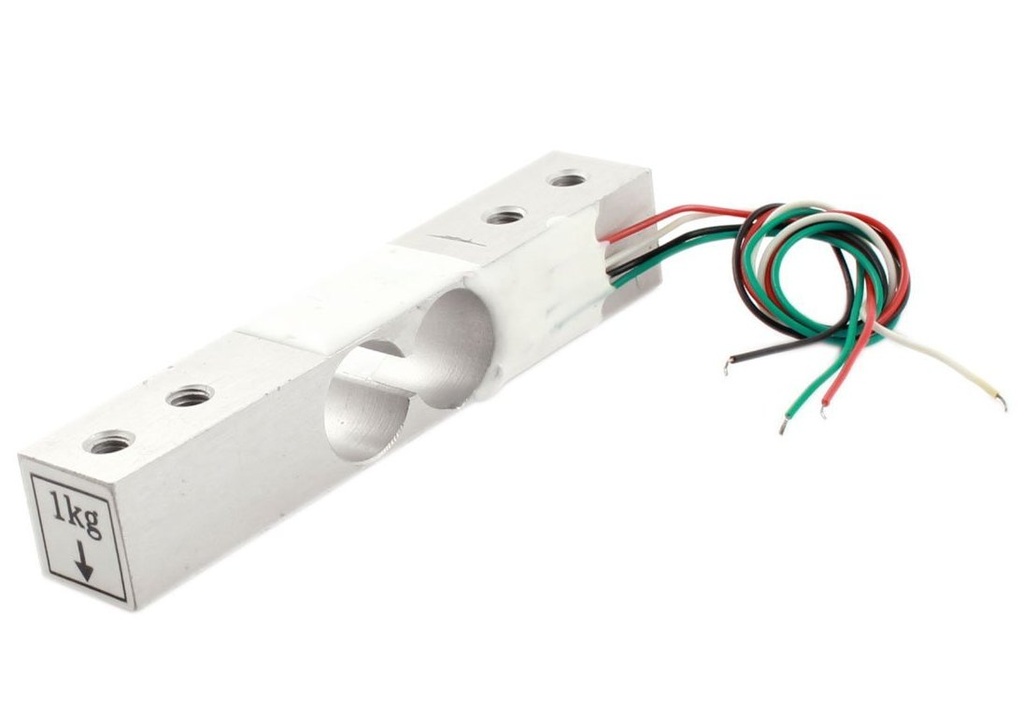

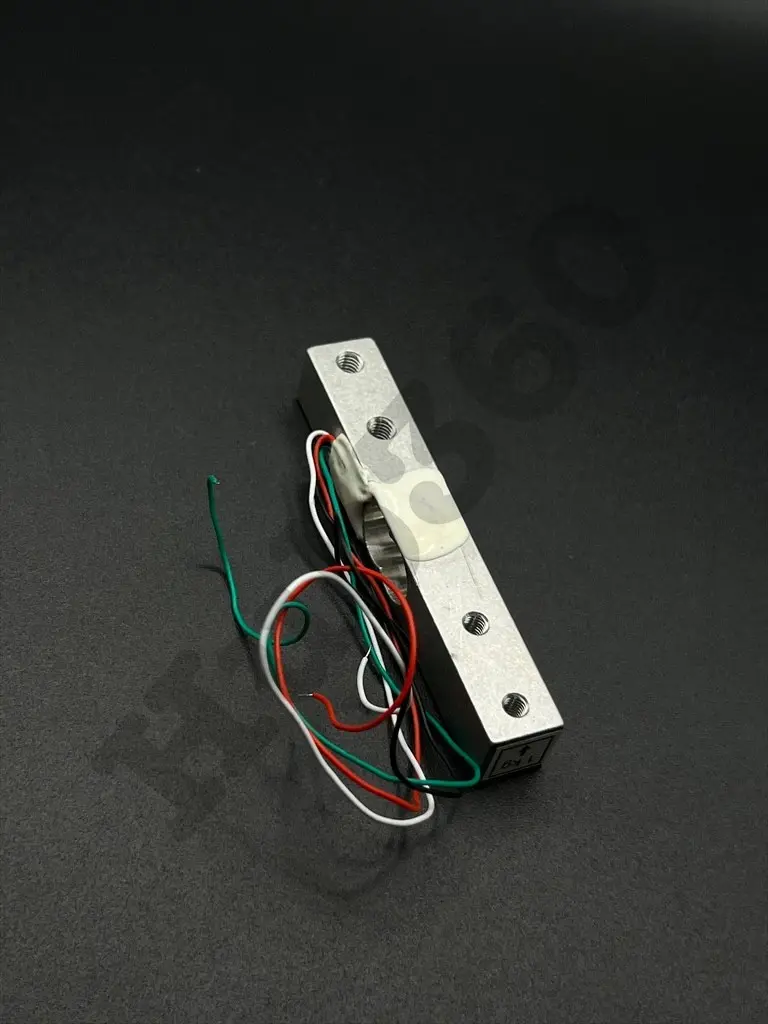

A 1kg load cell is a transducer that converts mechanical force into an electrical signal. It is commonly used in electronic scales, force measurement systems, and industrial automation applications. This load cell is capable of measuring up to 1 kilogram of force with high accuracy and reliability. It typically consists of a strain gauge bonded to a metal structure, which deforms under load, causing a change in electrical resistance that can be measured and converted into a weight reading.
Key Features:
- High accuracy and reliability
- Compact and lightweight design
- Easy to integrate into electronic scales and measurement systems
- Constructed from durable materials
- Linear output for precise measurements
- Compatible with standard load cell amplifiers and ADC modules
- Capacity: 1kg
- Material: Aluminum alloy
- Output Sensitivity: 1.0 ± 0.15mV/V
- Non-linearity: ±0.03% F.S.
- Hysteresis: ±0.03% F.S.
- Repeatability: ±0.02% F.S.
- Input Resistance: 1050 ± 10Ω
- Output Resistance: 1000 ± 10Ω
- Excitation Voltage: 5-10V DC (recommended)
- Operating Temperature Range: -10°C to +40°C
- Dimensions: 75 x 12.7 x 12.7 mm
- Wiring: Red (E+), Black (E-), Green (S+), White (S-)
- Electronic weighing scales
- Force measurement systems
- Industrial automation
- Load measurement in robotic systems
- DIY projects involving weight sensing
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
