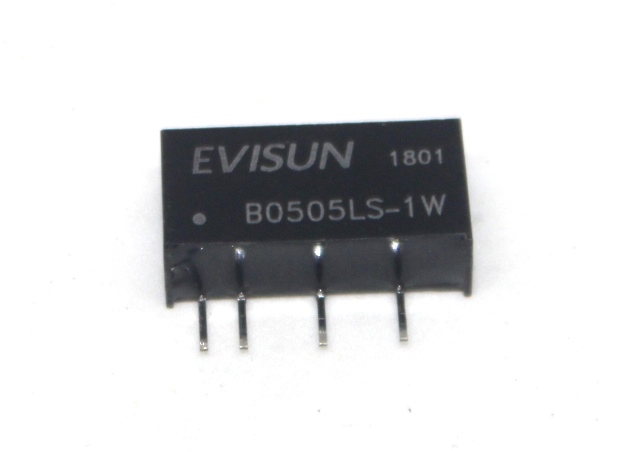

The B0505LS-1W is a DC-DC power isolation module that provides a compact and efficient solution for isolated power conversion. It is designed to provide isolated 5V output from a 5V input with a power rating of 1W. This module is widely used in industrial control, instrumentation, and data acquisition systems where isolation and noise reduction are essential.
Key Features:
- Provides electrical isolation between input and output
- Compact size and lightweight
- High efficiency
- Short circuit protection
- Low ripple and noise
- No external components required
- Input Voltage: 5V DC
- Output Voltage: 5V DC
- Output Power: 1W
- Isolation Voltage: 1000V DC
- Efficiency: Up to 80%
- Operating Temperature Range: -40°C to +85°C
- Package Type: SIP-7
- Industrial control systems
- Data acquisition systems
- Instrumentation
- Power isolation for noise-sensitive applications
- Communication systems
