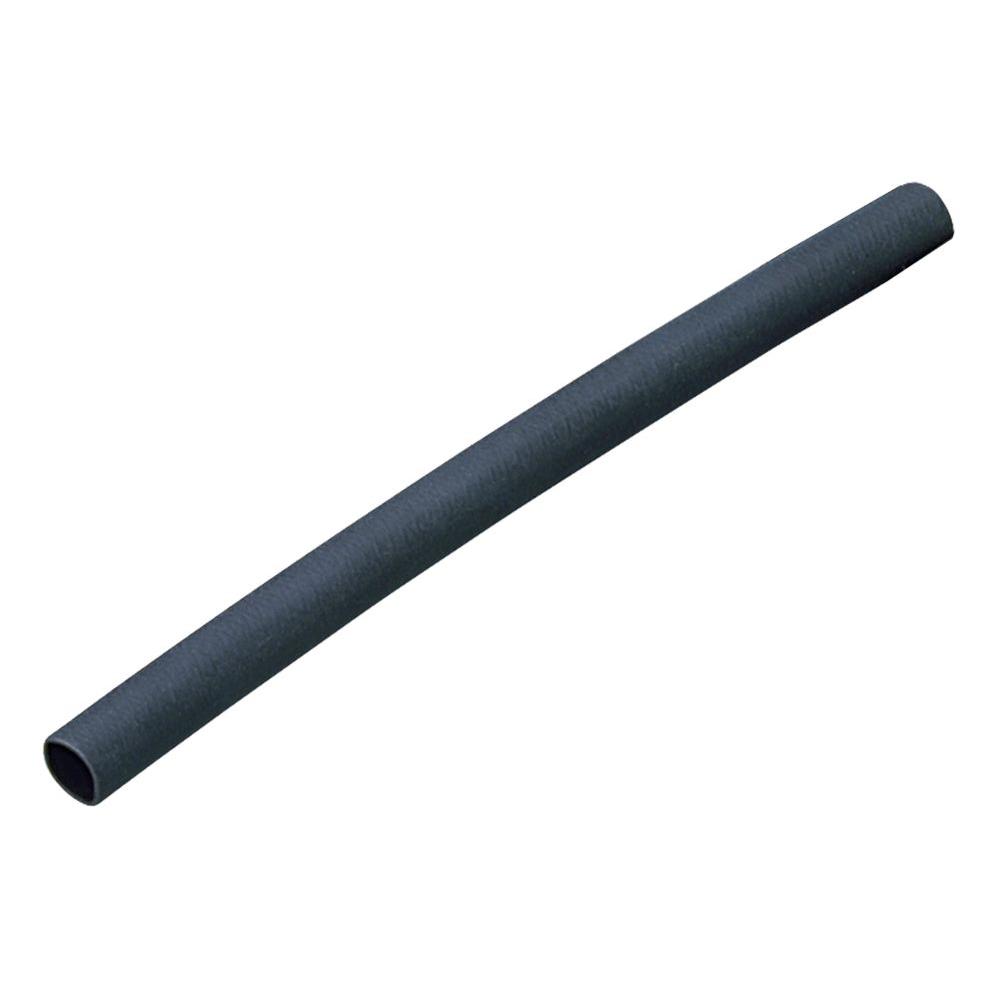

The Heat Shrinkable Tube 2mm is a high-performance, flexible, and durable solution for insulating and protecting wires and electrical components. Made from premium polyolefin, it provides excellent electrical insulation, mechanical protection, and strain relief. The tube shrinks to a secure fit when heated, ensuring a reliable seal.
Key Features:
- Material: High-quality polyolefin for flexibility and durability.
- Shrink Ratio: Typically 2:1, shrinking to half its original diameter when heated.
- Diameter: 2mm before shrinking.
- Heat Resistance: Withstands temperatures ranging from -55°C to 125°C.
- Insulation: Excellent electrical insulation and mechanical protection.
- Chemical Resistance: Resistant to common chemicals, oils, and solvents.
- Colors: Available in multiple colors for easy identification and color-coding of wires.
- Inner Diameter (before shrinking): 2mm
- Inner Diameter (after shrinking): 1mm (2:1 shrink ratio)
- Wall Thickness (after shrinking): 0.4mm to 0.6mm
- Operating Temperature Range: -55°C to 125°C
- Shrink Temperature: Starts at 70°C, fully shrinks at 125°C
- Material: Polyolefin
- Length: Available in various lengths
- Electrical Insulation: Insulating and protecting wires and electrical connections.
- Strain Relief: Providing strain relief for soldered and crimped connections.
- Environmental Protection: Protecting components from moisture, dust, and chemicals.
- Cable Management: Bundling and organizing cables and wires.
- Repair: Repairing damaged insulation on wires and cables.
- Cut to Length: Cut the heat shrinkable tube to the desired length.
- Slide Over Connection: Slide the tube over the wire or connection to be insulated.
- Apply Heat: Use a heat gun or lighter to apply heat evenly to the tube, starting from one end and working towards the other.
- Shrink and Secure: The tube will shrink tightly around the wire or connection, providing a secure and insulated finish.
- Ensure even heating to prevent overheating and damage to the tube.
- Use appropriate heat sources such as a heat gun for uniform shrinking.
- Avoid direct contact with flames to prevent burning.
