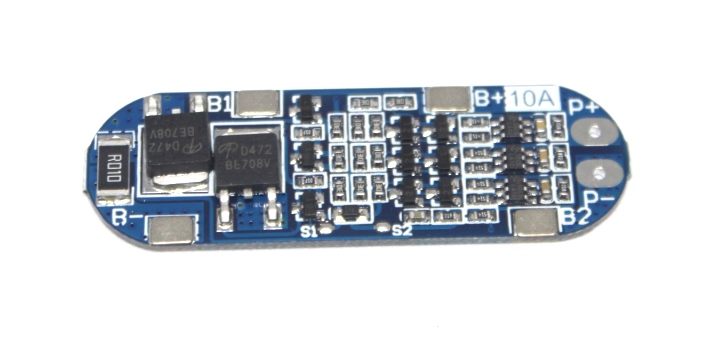

The 3S LiPo Battery Protection Board is designed to protect 3-cell LiPo (Lithium Polymer) batteries from overcharge, over-discharge, and short-circuit conditions. It ensures the safe operation of the battery by monitoring voltage levels and preventing damage to the cells. The board supports a maximum current of 10A and is suitable for applications that require reliable battery protection.
Key Features:
- Overcharge Protection: Prevents battery cells from exceeding the maximum voltage limit.
- Over-discharge Protection: Ensures battery cells do not drop below the minimum voltage threshold.
- Short-circuit Protection: Safeguards the battery from short-circuit conditions.
- Balancing Function: Balances the voltage across all cells for optimal performance and longevity.
- High Current Rating: Supports up to 10A current for robust applications.
- Compact Design: Suitable for integration in various battery-powered projects.
- Battery Type: LiPo (Lithium Polymer)
- Number of Cells: 3S (3 cells in series)
- Nominal Voltage: 11.1V
- Full Charge Voltage: 12.6V
- Discharge Voltage Cutoff: Typically around 9.0V (3.0V per cell)
- Maximum Current: 10A
- Protection Features: Overcharge, over-discharge, short-circuit, and balancing
- Dimensions: Varies based on design, typically around 50mm x 30mm x 10mm
- Weight: Approximately 20g
- RC Vehicles: Provides battery protection for remote-controlled cars, boats, and drones.
- Electric Bikes: Ensures safe operation of LiPo batteries in electric bicycles.
- DIY Projects: Ideal for various battery-powered electronic projects requiring LiPo batteries.
- Portable Devices: Protects batteries in portable electronic devices and gadgets.
