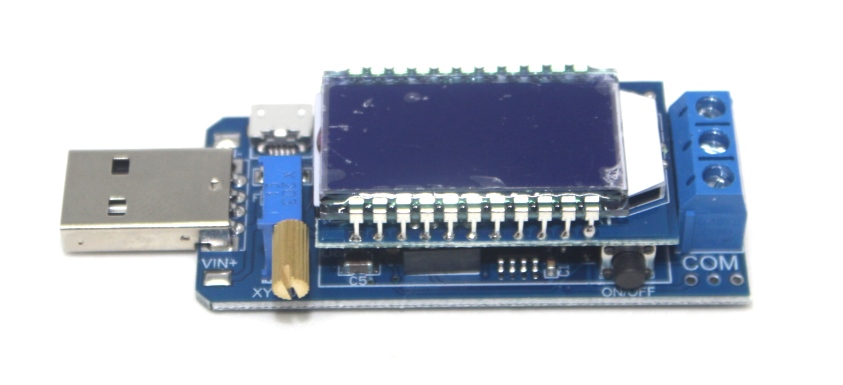

DC-DC USB Adjustable buck-boost 5v to3.3v 9v 12v 24v with LCD display
The DC-DC USB Adjustable Buck-Boost Converter is a versatile power conversion module that allows you to adjust the output voltage from a wide range of input voltages. It is equipped with an LCD display for easy monitoring of input and output voltages, making it ideal for various electronic projects and applications.
Key Features:
- Wide Input Voltage Range: Accepts input voltage from 5V to 32V.
- Adjustable Output Voltage: Provides a stable output voltage adjustable from 3.3V to 24V.
- Buck-Boost Conversion: Can step-up (boost) or step-down (buck) the input voltage as needed.
- LCD Display: Displays input and output voltages in real-time.
- High Efficiency: Efficient power conversion with minimal heat generation.
- Compact Design: Small and portable, suitable for various applications.
- Protection Features: Includes over-current, over-voltage, and short-circuit protection.
- Input Voltage Range: 5V to 32V
- Output Voltage Range: 3.3V to 24V (adjustable)
- Output Current: Up to 2A (depending on input and output voltage)
- Display Type: LCD
- Conversion Efficiency: Up to 92%
- Protection: Over-current, over-voltage, short-circuit protection
- Dimensions: 60mm x 30mm x 20mm
- Weight: 25g
- Portable Power Supplies: Create adjustable power supplies for portable devices.
- DIY Electronics Projects: Ideal for hobbyists and makers working on custom electronics projects.
- Voltage Regulation: Provides stable voltage for sensitive electronic components.
- Battery Management: Useful for managing battery power and charging circuits.
- Testing and Prototyping: Allows for easy testing and prototyping of circuits with different voltage requirements.
