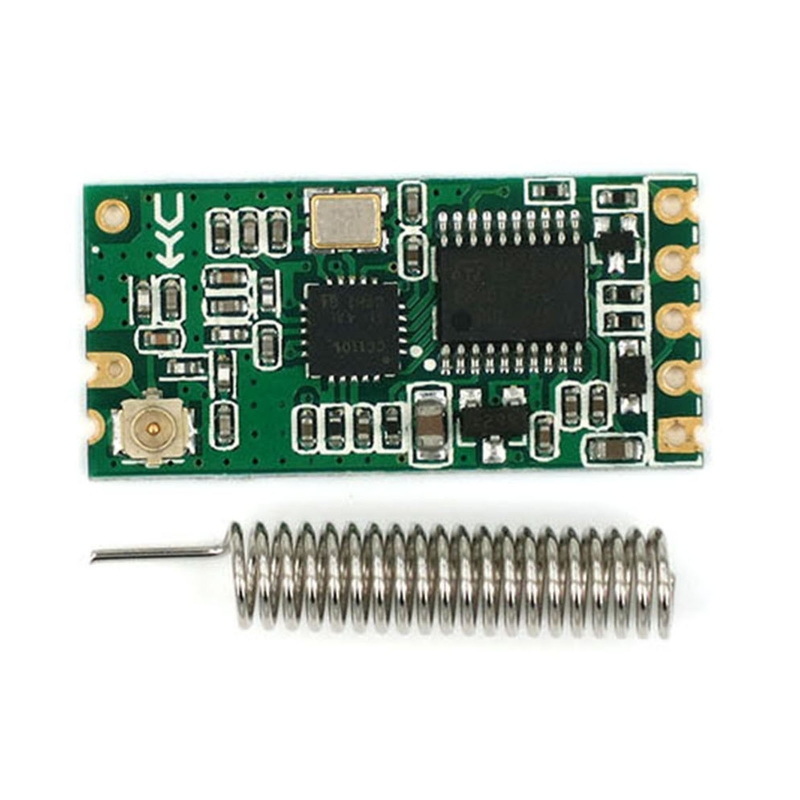

The HC-11 Wireless Module is a versatile and reliable communication module designed for wireless data transmission. It operates in the 433MHz frequency band and provides long-range communication capabilities for various applications. This module is ideal for use in remote control systems, sensor networks, industrial automation, and other wireless communication projects. The HC-11 offers simple UART communication, making it easy to integrate with microcontrollers and other serial devices.
Key Features:
- 433MHz Frequency Band: Operates in the 433MHz ISM band for long-range communication.
- UART Interface: Simple serial communication with microcontrollers and other devices.
- Low Power Consumption: Energy-efficient design for battery-powered applications.
- Configurable Parameters: Adjustable baud rate, frequency, and other settings.
- High Sensitivity: Enhanced signal reception for reliable communication.
- Compact Size: Small form factor for easy integration into projects.
- Frequency Range: 433.4MHz to 473.0MHz
- Modulation: GFSK (Gaussian Frequency Shift Keying)
- Communication Range: Up to 600 meters (open area)
- Baud Rate: 1200bps to 115200bps (configurable)
- Operating Voltage: 3.2V to 5.5V
- Operating Current: < 22mA (transmit), < 3.5mA (receive)
- Sensitivity: -112dBm
- Dimensions: 27.8mm x 14.4mm x 4mm
- Antenna: External antenna via SMA connector
- Remote Control Systems: Ideal for controlling devices wirelessly over long distances.
- Sensor Networks: Suitable for wireless sensor data transmission in IoT applications.
- Industrial Automation: Used in wireless communication for industrial automation systems.
- Home Automation: Perfect for home automation projects requiring wireless control.
- Wireless Data Transmission: General-purpose wireless data transmission between devices.
