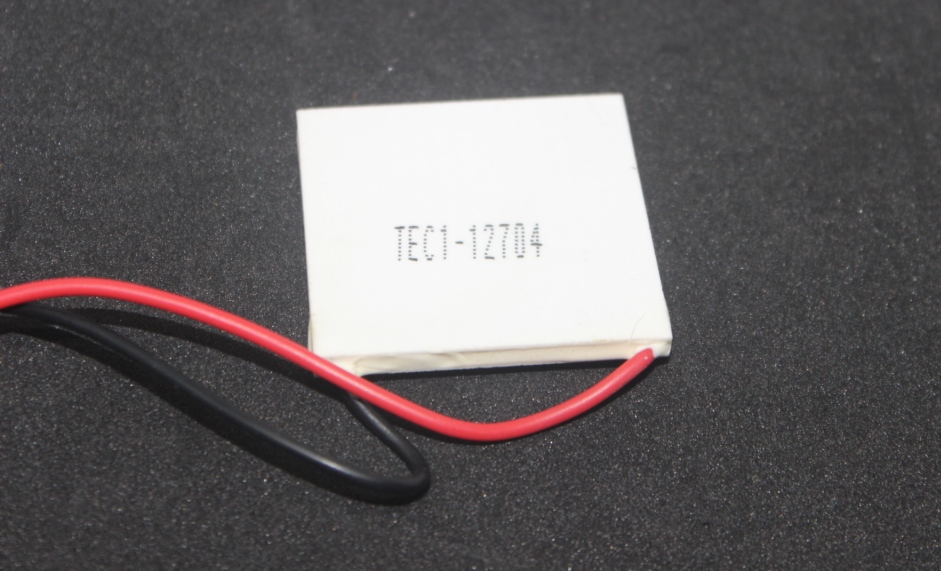

The Peltier Thermoelectric Cooler TEC1-12704 is a solid-state device that functions as a heat pump, transferring heat from one side of the device to the other when a DC current is applied. This module is commonly used in applications requiring cooling or heating, including electronics cooling, temperature control systems, and laboratory experiments. The TEC1-12704 offers efficient cooling and heating capabilities, making it suitable for a variety of thermal management applications.
Key Features:
- Efficient Cooling and Heating: Provides rapid temperature changes with high efficiency.
- Solid-State Reliability: No moving parts, ensuring quiet operation and long life.
- Compact Design: Small size allows for easy integration into various systems.
- Wide Operating Temperature Range: Can be used in a variety of environments.
- Easy to Use: Simple to operate with a DC power supply.
- Maximum Voltage (Vmax): 15.4V
- Maximum Current (Imax): 4A
- Maximum Power Consumption: 61.6W
- Maximum Temperature Difference (ΔTmax): 67°C
- Dimensions: 40mm x 40mm x 3.6mm
- Operating Temperature Range: -30°C to +70°C
- Electronics Cooling: Used to cool CPUs, GPUs, and other electronic components.
- Temperature Control Systems: Integrated into systems requiring precise temperature regulation.
- Laboratory Experiments: Ideal for scientific research and experiments requiring controlled temperatures.
- Portable Coolers: Used in portable cooling devices for food and beverages.
- Thermal Management: Applied in various industrial and consumer applications for thermal control.
