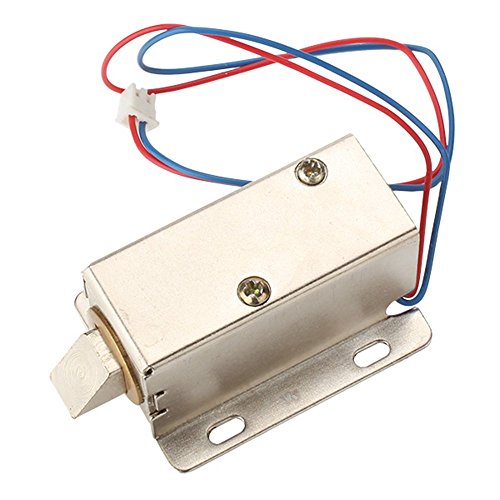

12V 0.8A electromagnetic solenoid door lock
This content will be shared across all product pages.
The 12V Electromagnetic/Solenoid Door Lock is an electronic locking mechanism designed to secure doors and other entry points. It operates using electromagnetic or solenoid technology to lock and unlock the door when energized with a 12V power supply. These locks are commonly used in access control systems, security applications, and automated entry systems.
Key Features:
- Operating Voltage: 12V DC
- Locking Mechanism: Electromagnetic or solenoid-based
- Mounting Type: Typically surface-mounted or recessed
- Construction: Usually made from durable metals or high-strength plastics
- Activation: Energized by applying 12V DC power to the lock
- Fail-Safe/Fail-Secure Options: Available in fail-safe (unlocked when powered) or fail-secure (locked when powered) configurations
- Operating Voltage: 12V DC
- Current Consumption: Typically ranges from 0.5A to 1A (depends on the model)
- Locking Force: Varies by design, often rated in pounds or kilograms
- Dimensions: Varies by model; typically includes detailed mounting dimensions
- Mounting Type: Surface mount or recess mount
- Material: Metal or high-strength plastic
- Fail-Safe/Fail-Secure: Configurations available (depends on the model)
- Access Control Systems: Used in electronic access control systems for secure entry.
- Automated Doors: Ideal for automated and remotely controlled door systems.
- Security: Applied in high-security environments where reliable locking is crucial.
- Home Automation: Suitable for integrating into home automation systems for smart locking.
- Industrial: Utilized in industrial settings for locking equipment or secure areas.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
