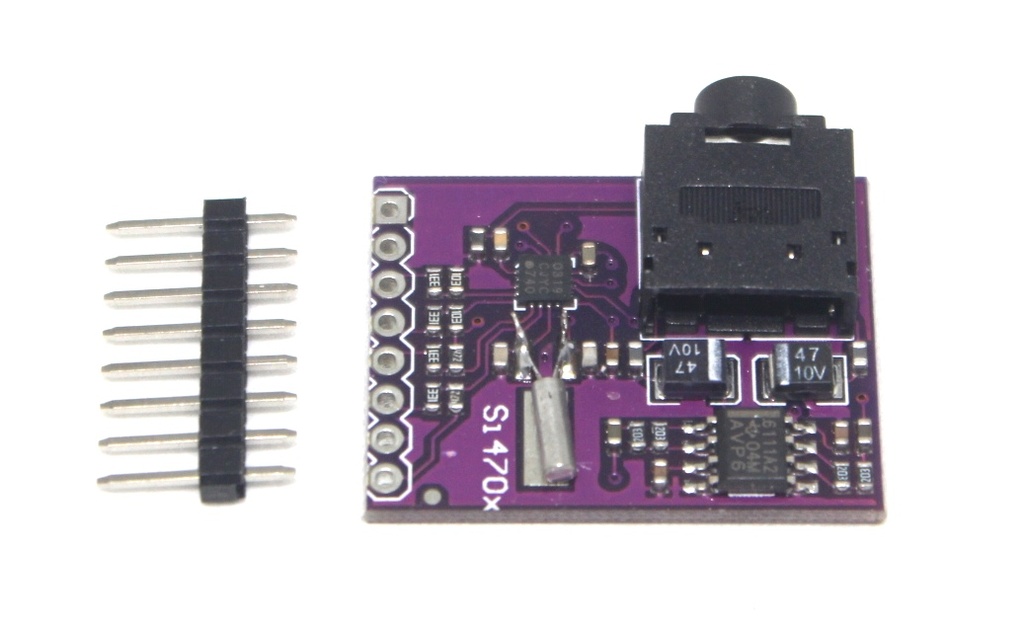

The MCU-470 Si4703 FM Tuner Development Board is a versatile and compact module designed for developing and experimenting with FM radio reception. Based on the Si4703 FM tuner IC, this board provides a robust platform for integrating FM radio functionality into various electronic projects. It features easy-to-use controls and interfaces for tuning, volume adjustment, and signal reception, making it suitable for both prototyping and educational purposes.
Key Features:
- Si4703 FM Tuner IC: Provides high-quality FM radio reception with good sensitivity and selectivity.
- Digital Tuning: Allows precise frequency tuning and easy channel selection.
- Integrated LCD Display: Shows frequency and status information for easy monitoring.
- User-Friendly Interface: Includes controls for tuning, volume adjustment, and channel scanning.
- Compact Design: Small form factor for easy integration into various projects.
- Compatible with Development Boards: Easily integrates with popular microcontroller development boards for custom applications.
- FM Tuner IC: Si4703
- Frequency Range: 76MHz to 108MHz (FM band)
- Tuning Steps: 100kHz
- Audio Output: Mono or stereo (depends on implementation)
- Display: Integrated LCD for frequency and status display
- Power Supply: 5V DC (via USB or external power)
- Dimensions: 60mm x 50mm x 15mm (approx.)
- Weight: 80g (approx.)
- FM Radio Projects: Ideal for DIY FM radio receiver projects and experiments.
- Educational Use: Suitable for learning and teaching about FM radio technology and circuitry.
- Prototyping: Useful for developing and testing FM radio functions in electronic devices.
- Embedded Systems: Can be integrated into embedded systems requiring FM radio capabilities.
- Hobbyist Electronics: Perfect for electronics enthusiasts and makers working on radio-based projects.
