Description

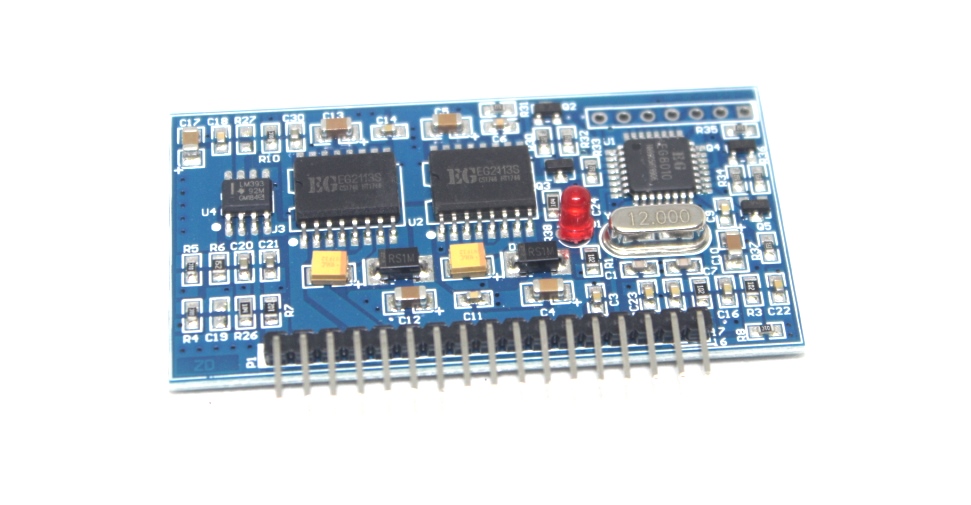

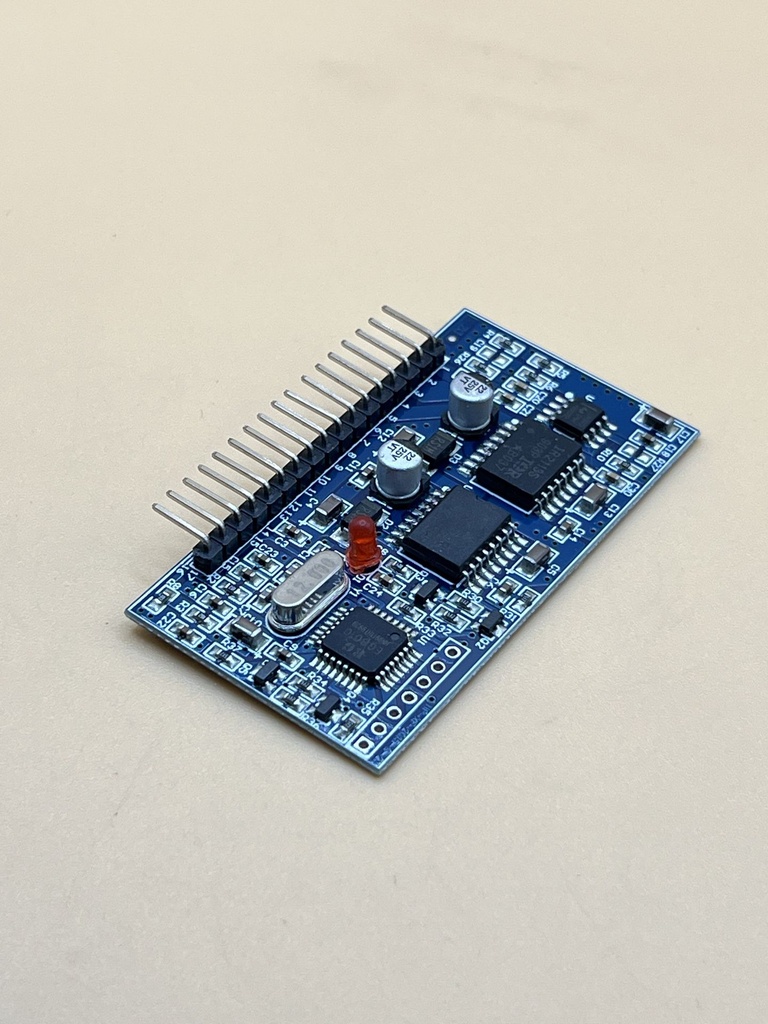

The EGS002B inverter driver board is a high-performance module designed to generate pure sine wave AC output from a DC input. It integrates the EG8010 digital sine wave generator and IR2110 MOSFET driver for precise control, high efficiency, and low distortion. Ideal for developing reliable inverter systems, it is widely used in renewable energy, UPS (Uninterruptible Power Supply), and power management applications.
Key Features
- Digital Sine Wave Generation: Equipped with the EG8010 chip for accurate, stable, and pure sine output.
- High-Efficiency MOSFET Drive: Uses IR2110 for effective MOSFET switching and reduced losses.
- Pure Sine Wave Output: Delivers clean, low-distortion AC output (<2% THD) suitable for sensitive electronics.
- Adjustable Frequency: Supports both 50Hz and 60Hz operation for global compatibility.
- Protection Features: Built-in overload, short-circuit, and thermal protection.
- LED Indicators: Onboard LEDs provide real-time operational and fault status.
- Modular Design: Simplifies integration into inverter systems and DIY power projects.
Specification
- Input Voltage: 12V / 24V / 48V DC (depending on model)
- Output Voltage: 220V AC (adjustable)
- Output Frequency: Selectable 50Hz or 60Hz
- Output Power: Up to 1kW (model dependent)
- THD (Total Harmonic Distortion): <2%
- Efficiency: >90%
- MOSFET Driver: IR2110
- Sine Wave Generator: EG8010
- Protection: Overload, short-circuit, and thermal protection
- PCB Dimensions: Approximately 100mm × 80mm
Application
- Renewable Energy Systems: Perfect for solar and wind inverter designs.
- Uninterruptible Power Supplies (UPS): Provides stable power for computers and sensitive equipment.
- Power Management Systems: Suitable for AC output regulation and conversion systems.
- DIY and Educational Projects: Great for building and testing custom inverters.
- Portable and Backup Power Solutions: Ideal for off-grid and emergency power setups.
Datasheet: For detailed technical specifications, refer to the EGS002B EG8010 IR2110 Pure Sine Wave Inverter Driver Board Datasheet.
