Description

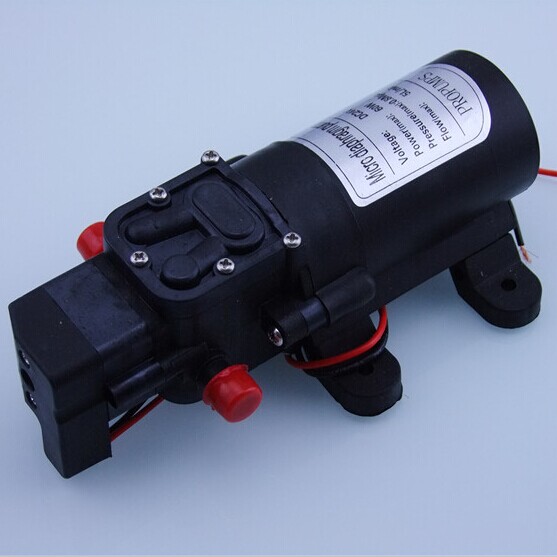

The 12V DC Self-Priming Diaphragm Water Pump is a compact, high-pressure pump designed for efficient water transfer in a wide range of applications. With a flow rate of up to 5 liters per minute and a maximum pressure of 116 PSI (0.8 MPa), it is ideal for spraying, cleaning, irrigation, and automation systems.
This pump features a built-in automatic pressure switch that starts and stops the motor based on water demand, helping conserve power and extend the pump’s lifespan. Its self-priming capability allows it to draw water from a lower level without manual priming.
Key Features
- High Pressure Output – Delivers up to 116 PSI for strong and consistent water flow
- Self-Priming Design – Can lift water up to 1.5 meters without pre-filling
- Automatic Pressure Switch – Turns ON/OFF automatically based on outlet pressure
- Stable Flow Rate – Provides up to 5 L/min flow rate
- Low Noise Operation – Smooth and quiet diaphragm mechanism
- Durable Construction – Built for long-lasting performance
- Vibration Isolation Mounts – Rubber feet reduce noise and vibration
- Compact Size – Easy to install in tight spaces
Specification
- Voltage: DC 12V
- Power: 60W
- Flow Rate: 5 L/min
- Recommended Hose Size: 10 mm inner diameter (ID)
- Maximum Pressure: 116 PSI (0.8 MPa)
- Suction Lift: Up to 1.5 meters
- Maximum Head: Up to 50 meters
- Pump Type: Diaphragm Pump
- Dimensions: Approx. 16.7 × 9.9 cm
- Cable Length: Approx. 29 cm
- Mount Type: Rubber anti-vibration mounts
Application
- Garden watering and irrigation systems
- Vehicle washing and spraying systems
- Portable water transfer systems
- Caravan, RV, and marine water supply
- DIY projects and automation systems
- Agricultural and industrial equipment
Datasheet: For detailed technical specifications, refer to the 12V 60W High-Pressure Water Pump Datasheet
