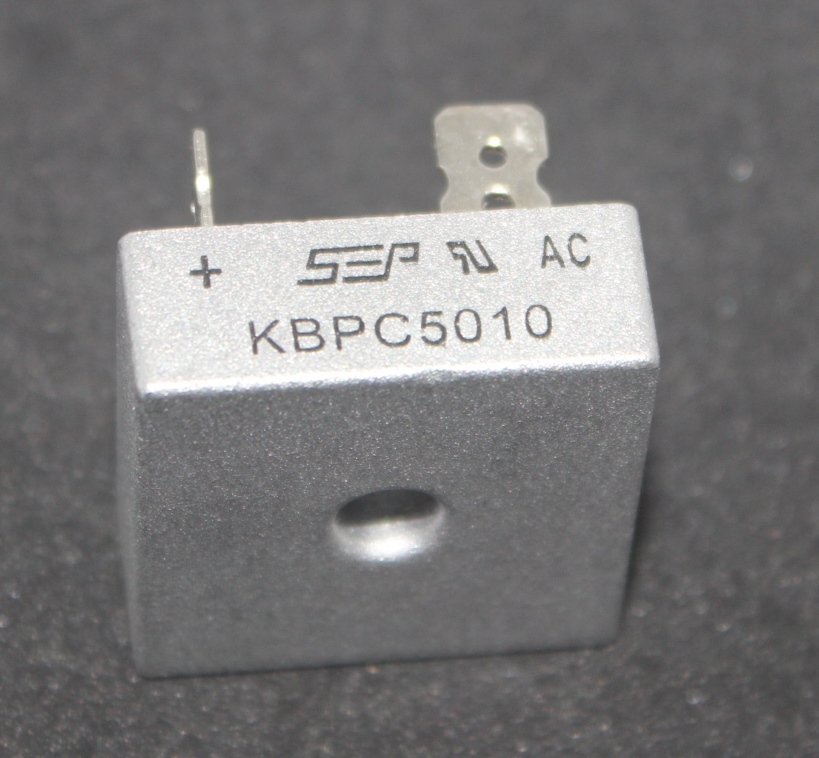

The KBPC5010 is a high-current, high-voltage full bridge rectifier designed to convert AC to DC power efficiently. With a maximum current rating of 50A and a peak reverse voltage of 1000V, it is suitable for use in power supplies, motor drives, and other high-power applications. The rectifier is housed in a robust and compact package, ensuring reliable performance under demanding conditions.
Key Features:
- High Current Rating: Capable of handling up to 50A, ideal for high-power applications.
- High Voltage Rating: Supports peak reverse voltage up to 1000V.
- Efficient AC to DC Conversion: Converts alternating current (AC) to direct current (DC) with high efficiency.
- Robust Construction: Durable and reliable, designed to withstand harsh operating conditions.
- Compact Package: Space-saving design suitable for various applications.
- Maximum Repetitive Peak Reverse Voltage (Vrrm): 1000V
- Maximum RMS Voltage (Vrms): 700V
- Maximum DC Blocking Voltage (Vdc): 1000V
- Maximum Average Forward Rectified Current (If(av)): 50A
- Peak Forward Surge Current (Ifsm): 400A
- Forward Voltage Drop (Vf): 1.2V per element at 25°C
- Operating Temperature Range: -55°C to +150°C
- Mounting Type: Through-hole
- Package Type: KBPC-50
- Power Supplies: Used in AC to DC power supplies for efficient rectification.
- Motor Drives: Converts AC to DC power in motor drive circuits.
- Battery Chargers: Suitable for high-current battery charging applications.
- Welding Equipment: Ensures reliable DC power supply in welding machines.
- Industrial Equipment: Powers various industrial devices requiring DC power.
