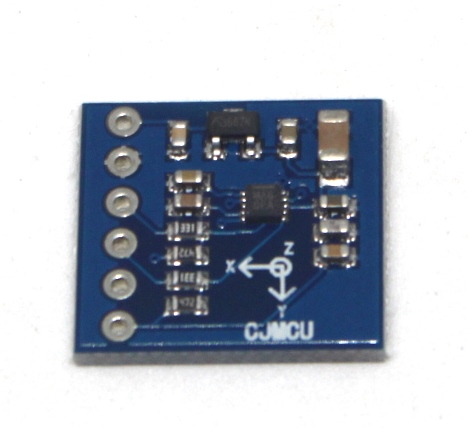

MCU-MAG3110 3 axis digital earth magnetic field sensor module
Description: The MCU-MAG3110 is a 3-axis digital earth magnetic field sensor module that provides accurate measurements of the Earth's magnetic field in three dimensions. Based on the MAG3110 sensor, this module offers digital output for easy integration with microcontrollers and is ideal for applications requiring magnetic field measurement or compass functionality.
Key Features:
- 3-axis magnetic field sensing for comprehensive spatial measurements
- Digital output for straightforward integration with microcontrollers
- High sensitivity and accuracy
- Compact design for versatile applications
- Easy-to-use with standard communication interfaces
- Sensor Type: MAG3110
- Measurement Axes: 3 (X, Y, Z)
- Magnetic Field Range: ±1000 μT
- Resolution: 0.1 μT
- Output Interface: I2C
- Operating Voltage: 3.3V to 5V DC
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 20mm x 20mm x 5mm
- Earth magnetic field measurement
- Compass and navigation systems
- Robotics and automation
- Environmental monitoring
- Geophysical research
