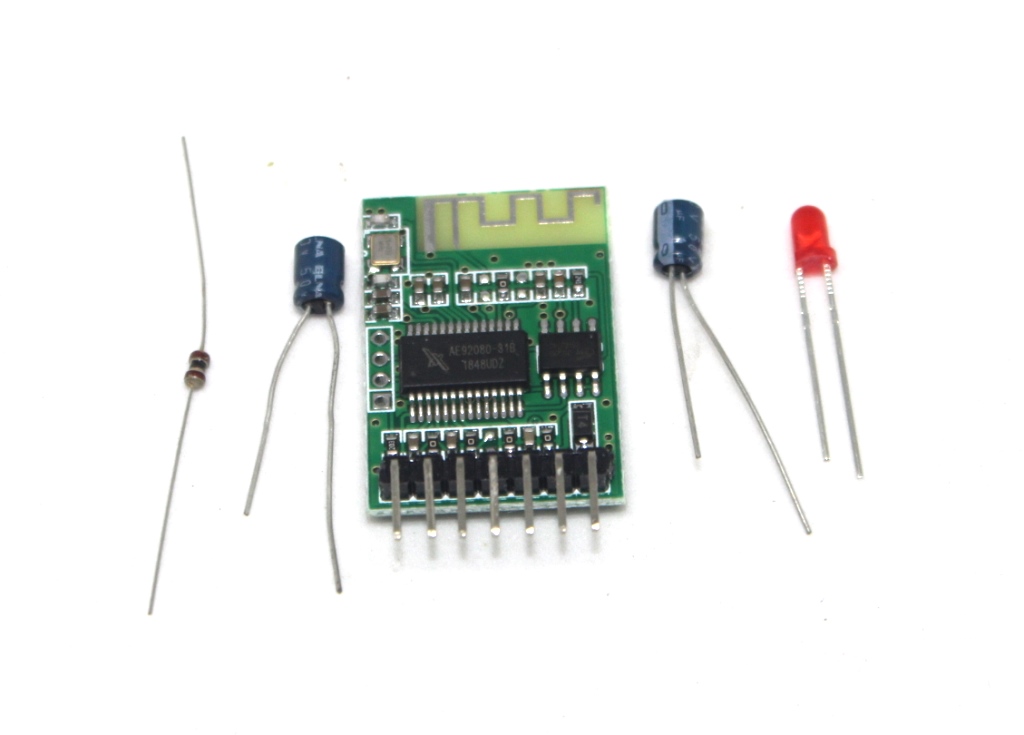

Description: The Bluetooth 4.0 Audio Receiver and Amplifier Module is a compact, high-performance module designed to receive audio signals wirelessly via Bluetooth and amplify them for high-quality audio output. This module is ideal for applications such as wireless speakers, home audio systems, and DIY audio projects.
Key Features:
- Bluetooth 4.0 connectivity for wireless audio streaming
- High-quality audio output with low distortion
- Integrated power amplifier
- Compact and easy to integrate
- Wide operating voltage range
- Bluetooth Version: 4.0
- Frequency Range: 2.402 GHz to 2.480 GHz
- Audio Output Power: 3W per channel
- Operating Voltage: 5V to 24V DC
- Current Consumption: ≤100 mA (idle), ≤500 mA (active)
- Signal-to-Noise Ratio (SNR): ≥75 dB
- Total Harmonic Distortion (THD): ≤0.1%
- Operating Temperature Range: -20°C to +60°C
- Output Impedance: 4Ω to 8Ω
- Wireless audio speakers
- Home audio systems
- DIY audio projects
- Portable audio devices
- Car audio systems
