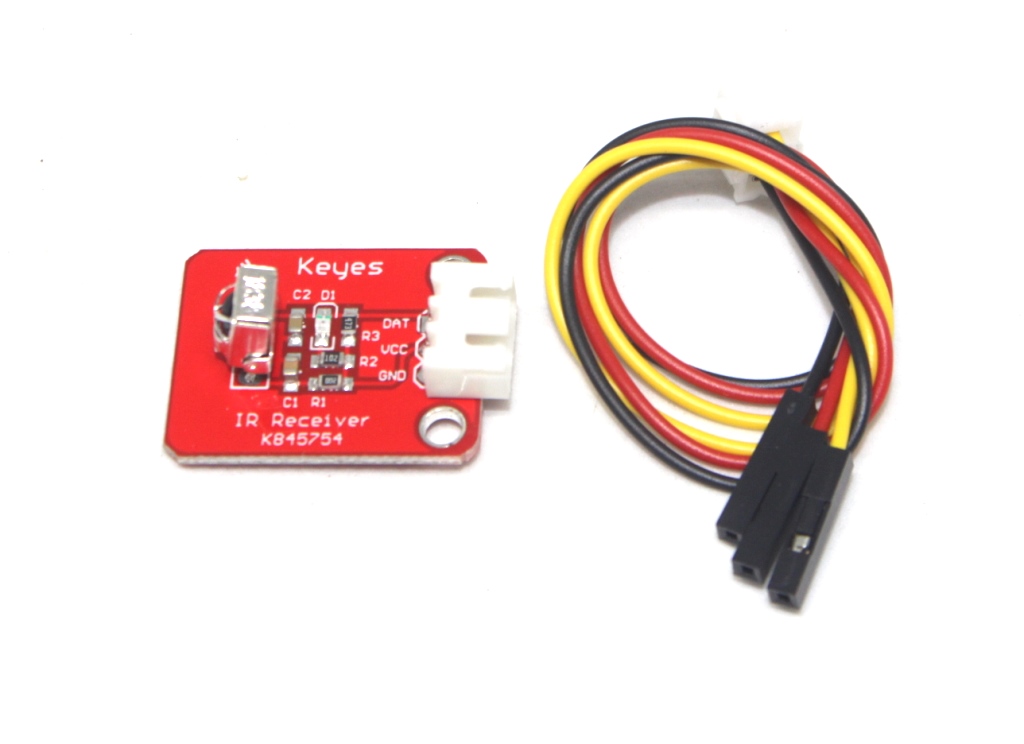

Description: The 1838T Infrared Receiver Sensor Module is designed to receive and decode infrared (IR) signals from remote controls. It is commonly used in consumer electronics for remote control applications. The module features high sensitivity to IR signals, a wide operating voltage range, and excellent noise suppression, making it an ideal choice for various IR-based remote control systems.
Key Features:
- High sensitivity to infrared signals
- Compatible with standard IR remote controls
- Wide operating voltage range
- Excellent noise suppression
- Compact design for easy integration
- Sensor Type: 1838T IR receiver
- Operating Voltage: 2.7V to 5.5V DC
- Reception Distance: Up to 18 meters
- Carrier Frequency: 38 kHz
- Reception Angle: ±45°
- Current Consumption: 0.4 to 1.5 mA
- Output Type: Digital
- Operating Temperature Range: -25°C to +85°C
- Remote control systems for TVs, DVD players, and other consumer electronics
- IR data transmission
- Home automation systems
- Robotics and automation projects
- Learning and educational projects involving IR communication
