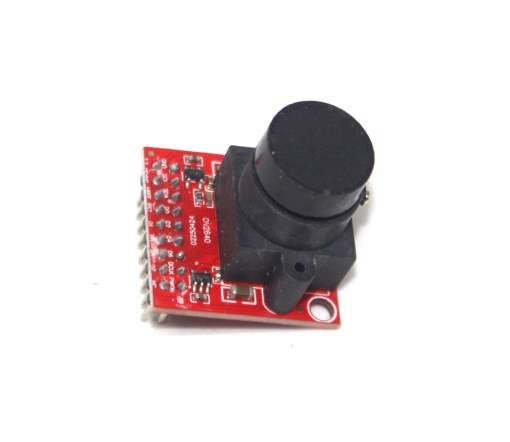

Description: The OV2640 Camera Module is a compact, high-performance digital camera module designed for a wide range of imaging applications. It features a 2-megapixel CMOS sensor with excellent image quality and low power consumption. The module supports various resolutions and output formats, making it suitable for applications such as surveillance, IoT devices, and DIY electronics projects.
Key Features:
- 2-megapixel CMOS sensor
- High image quality with low power consumption
- Supports multiple resolutions
- Flexible output formats
- Compact and easy to integrate
- Sensor Type: CMOS
- Resolution: 2 megapixels
- Output Formats: JPEG, YUV, RGB
- Interface: SCCB
- Frame Rate: 30 fps at VGA, 15 fps at SXGA
- Lens: 1/4 inch
- Operating Voltage: 3.3V
- Current Consumption: 120 mA (typical)
- Operating Temperature Range: -20°C to +70°C
- Surveillance systems
- IoT devices with visual input
- Robotics and automation projects
- DIY electronics projects
- Image processing and recognition
