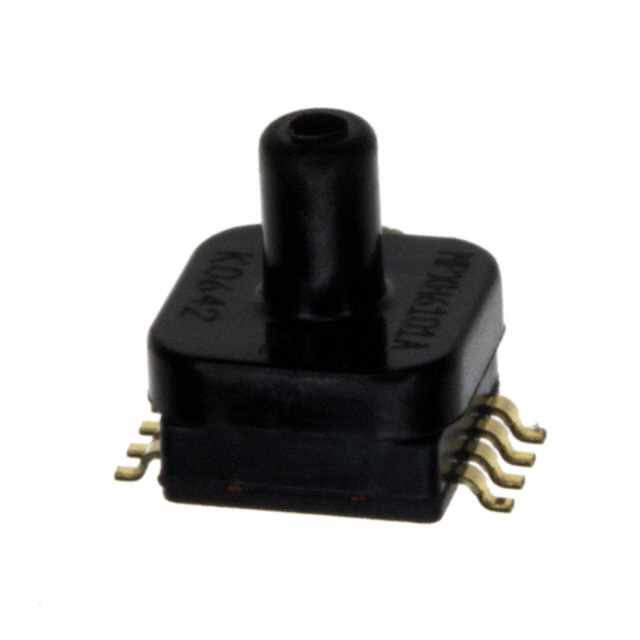

Description: The MPXHZ6400AC6T1 is a high-performance, integrated silicon pressure sensor designed to measure pressures ranging from 5 to 400 KPa. This sensor offers precise and reliable performance, making it ideal for a variety of applications, including automotive, industrial, and medical pressure monitoring systems.
Key Features:
- Wide pressure range: 5 to 400 KPa
- High accuracy and reliability
- Integrated silicon pressure sensor
- Temperature-compensated
- Compact and easy to integrate
- Pressure Range: 5 to 400 KPa
- Supply Voltage: 4.75V to 5.25V DC
- Output Voltage: 0.2V to 4.7V DC
- Sensitivity: 12.5 mV/KPa
- Accuracy: ±1.5% full scale
- Operating Temperature Range: -40°C to +125°C
- Package Type: Surface Mount
- Automotive pressure monitoring (e.g., tire pressure, manifold pressure)
- Industrial pressure measurement
- Medical devices (e.g., blood pressure monitoring)
- HVAC systems
- Consumer electronics requiring pressure measurement
