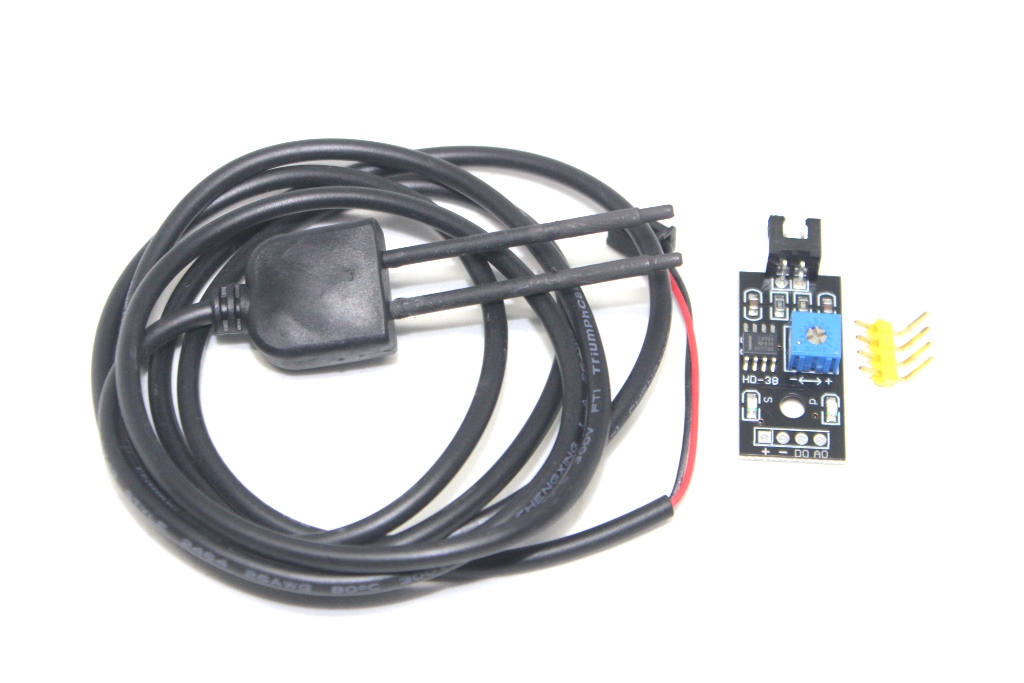

Description: The Soil Moisture Hygrometer Detection Sensor Module is designed to accurately measure soil humidity levels. Featuring a corrosion-resistant probe, it ensures long-lasting performance even in harsh conditions. The module operates within a wide voltage range of DC 3.3-12V and is suitable for integration with Arduino and other microcontroller platforms. It provides both digital and analog outputs, making it versatile for various applications in agriculture, gardening, and automated watering systems.
Key Features:
- Corrosion-resistant probe for durability
- Accurate soil moisture detection
- Wide operating voltage range: DC 3.3-12V
- Dual output options: Digital (DO) and Analog (AO)
- Low power consumption
- Adjustable sensitivity via potentiometer
- Easy integration with microcontrollers
- Name: Soil Humidity Sensor
- Size: 36 x 15 x 7 mm
- Voltage: DC 3.3-12V
- Current: <20mA (standby); <30mA (output)
- Interface: + - DO AO (DO for digital output, AO for analog output)
- Operating Temperature: -25°C to 85°C
- Agricultural soil moisture monitoring
- Home gardening and plant care
- Automated irrigation systems
- Environmental monitoring
- Greenhouse and hydroponic systems
