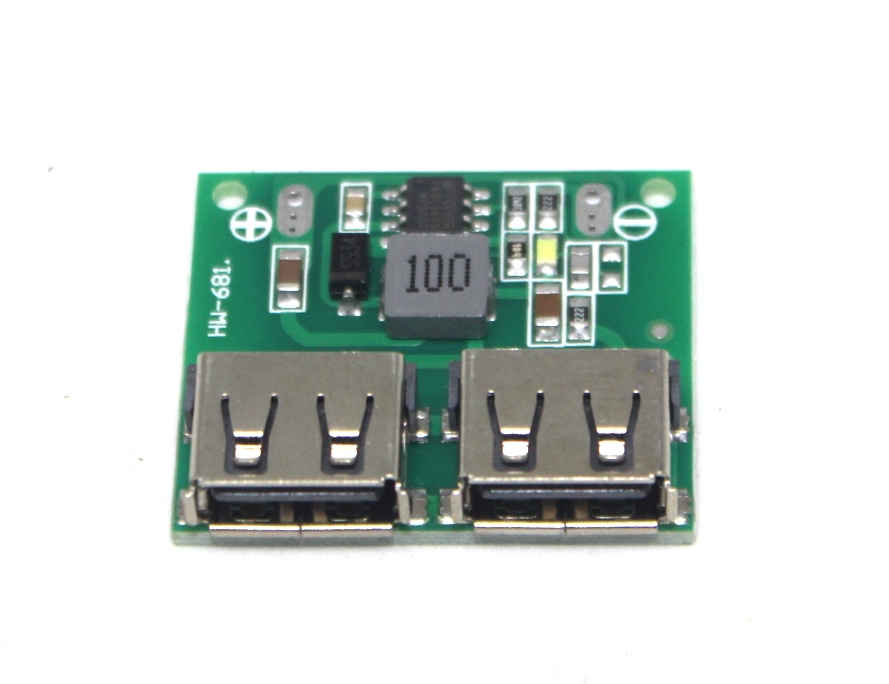

Description: The HW-681 DC-DC Buck Module is a high-efficiency voltage regulator designed to step down an input voltage range of 6-26VDC to a stable 5VDC output. Capable of delivering up to 3A of current, this module is ideal for powering 5V DC devices from higher voltage sources. Its compact design and reliable performance make it suitable for a wide range of applications, including powering electronics, Arduino projects, and other low-voltage devices.
Key Features:
- Step-down (buck) converter for reducing input voltage to 5VDC
- Input Voltage Range: 6V to 26V DC
- Output Voltage: 5V DC (fixed)
- Maximum Output Current: 3A
- High conversion efficiency for minimal power loss
- Compact design for easy integration into various projects
- Input Voltage Range: 6V to 26V DC
- Output Voltage: 5V DC (fixed)
- Maximum Output Current: 3A
- Efficiency: Up to 92% (typical)
- Output Ripple: < 50mV
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 43 mm x 28 mm x 15 mm
- Powering 5V DC devices from higher voltage sources
- Arduino and other microcontroller projects
- DC-DC conversion in electronic circuits
- Battery-powered devices
- Automotive and industrial electronics
