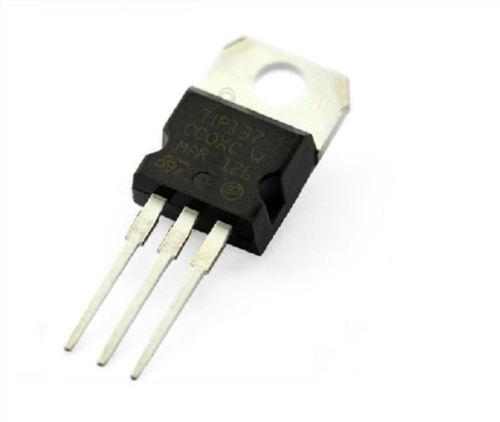

Description: The TIP137 is a high-current PNP Darlington transistor designed for power switching applications. It features a high current gain and is capable of handling significant load currents. The transistor is suitable for driving high-power components such as motors and solenoids, and is known for its reliability and durability in various circuits.
Key Features:
- PNP Darlington configuration for high current gain
- Capable of handling high load currents
- Suitable for power switching and amplification
- High collector-emitter voltage rating
- Reliable performance in high-power applications
- Type: PNP Darlington Transistor
- Collector-Emitter Voltage (Vce): -100V
- Collector-Base Voltage (Vcbo): -100V
- Emitter-Base Voltage (Vebo): -5V
- Continuous Collector Current (Ic): -8A
- Power Dissipation (Ptot): 70W
- DC Current Gain (hFE): 1000 to 15000
- Operating and Storage Junction Temperature Range: -65°C to +150°C
- Package Type: TO-220
- Pin 1 (Collector): Connected to the load
- Pin 2 (Base): Connected to the control signal
- Pin 3 (Emitter): Connected to ground
- Motor drivers
- Solenoid drivers
- High-power switching
- Amplification circuits
- Relay drivers
