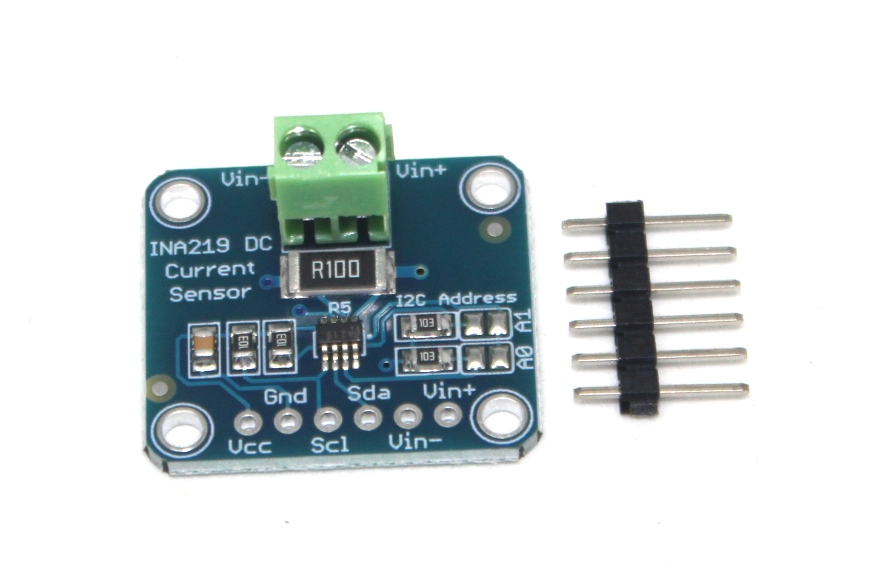

MCU-219 INA219 Zero drift bidirectional current/power monitoring sensor module
Description: The MCU-219 INA219 Zero Drift Bidirectional Current/Power Monitoring Sensor Module is an advanced sensor designed for precise current and power measurement in both directions. Featuring zero-drift technology, it provides accurate readings with minimal offset errors, making it ideal for high-precision applications where reliable current and power monitoring is essential.
Key Features:
- Bidirectional current and power measurement
- Zero drift technology for high accuracy
- I2C communication interface for easy integration
- Wide measurement range and high resolution
- Low power consumption and compact design
- Measurement Range: ±3.2A (bidirectional)
- Accuracy: ±1% (typical)
- Current Resolution: 1.0 mA
- Power Resolution: 0.1 mW
- Voltage Measurement Range: 0 to 26V
- Communication Interface: I2C
- Operating Voltage: 3.0V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- Package Type: QFN-10
- Power management systems
- Battery monitoring
- Energy measurement
- Solar power monitoring
- Robotics and automation
