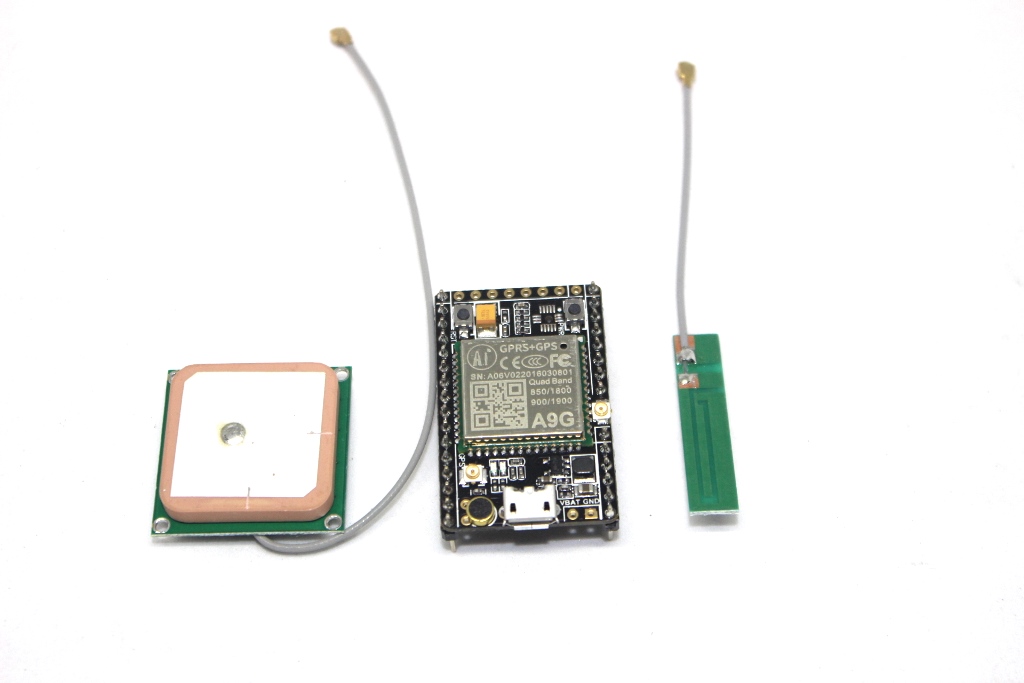

Description: The A9 GSM GPRS GPS BDS Development Board is a versatile and compact module designed for integrating GSM, GPRS, GPS, and BDS (BeiDou Navigation Satellite System) functionalities into various projects. This development board allows for robust communication and location tracking capabilities, making it ideal for applications in telecommunications, navigation, and IoT devices.
Key Features:
- Integrated GSM and GPRS modules for mobile communication and data transfer
- GPS and BDS functionality for global and regional positioning
- High sensitivity and accuracy for location tracking
- Compact design for easy integration into various projects
- Supports multiple communication protocols
- GSM Frequency Bands: 850/900/1800/1900 MHz
- GPRS Class: Class 10
- GPS and BDS Frequency: L1 (1575.42 MHz for GPS), B1 (1561.098 MHz for BDS)
- GPS/BDS Accuracy: < 2.5 meters (typical)
- Input Voltage: 3.4V to 4.2V
- Communication Protocols: UART, TCP/IP
- Dimensions: 50 mm x 50 mm
- Operating Temperature Range: -40°C to +85°C
- Mobile communication projects
- GPS and location-based services
- IoT applications
- Vehicle tracking systems
- Remote monitoring and control systems
