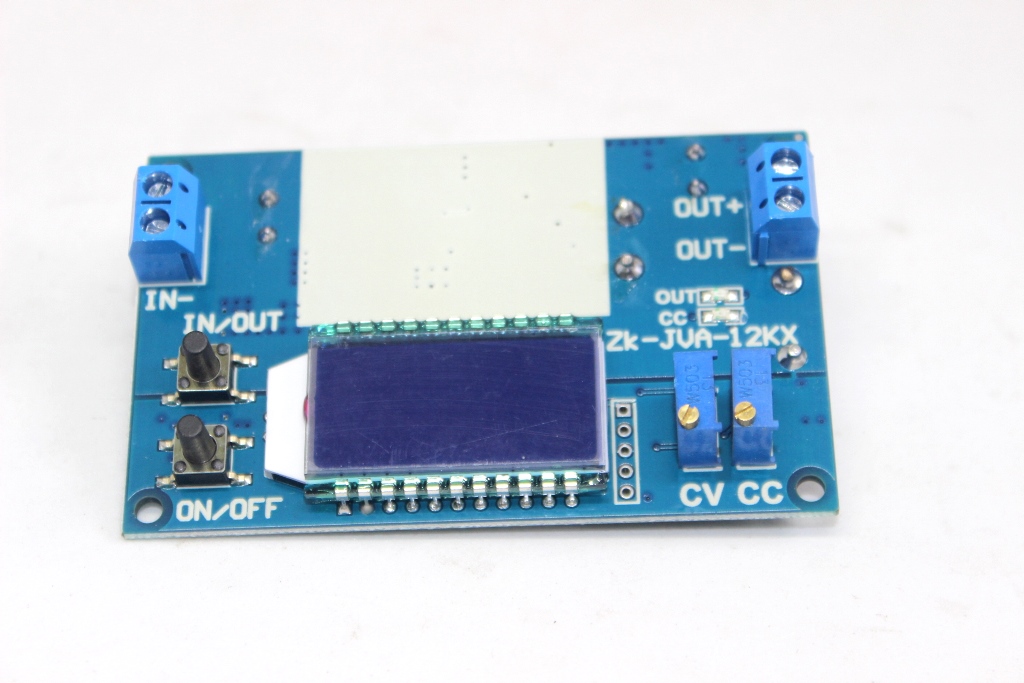

Description: The ZK-JVA-12KX is a high-performance buck converter module capable of adjusting both current and voltage outputs. It features an integrated LCD display for real-time monitoring of output parameters, making it ideal for various power supply applications. This module is designed to handle high currents up to 12A, providing efficient and reliable power conversion. Key Features:
  • Adjustable current and voltage outputs
  • High current handling capability (up to 12A)
  • Integrated LCD display for real-time monitoring
  • High efficiency and reliable performance
  • Compact design for easy integration
Technical Specifications:
  • Input Voltage: 8V to 60V DC
  • Output Voltage: 1.25V to 36V DC (adjustable)
  • Output Current: 0 to 12A (adjustable)
  • Maximum Power: 300W
  • Conversion Efficiency: Up to 96%
  • LCD Display: Shows output voltage, current, and power
  • Operating Temperature Range: -10°C to +60°C
Applications:
  • DIY adjustable power supplies
  • Battery charging
  • Power regulation for electronic projects
  • Laboratory power supply
  • LED drivers
Datasheet: For detailed technical information, refer to the ZK-JVA-12KX Datasheet.
