Key Features:
- Wide Voltage Measurement Range: 5V – 100V DC for various applications
- Self-Powered Operation: Works within 5V – 100V DC supply
- High Precision: ±1% accuracy for reliable readings
- Low Power Consumption:
- Red Display: <15mA
- Green & Blue Display: <12mA
- Fast Refresh Rate: 300ms per update for real-time monitoring

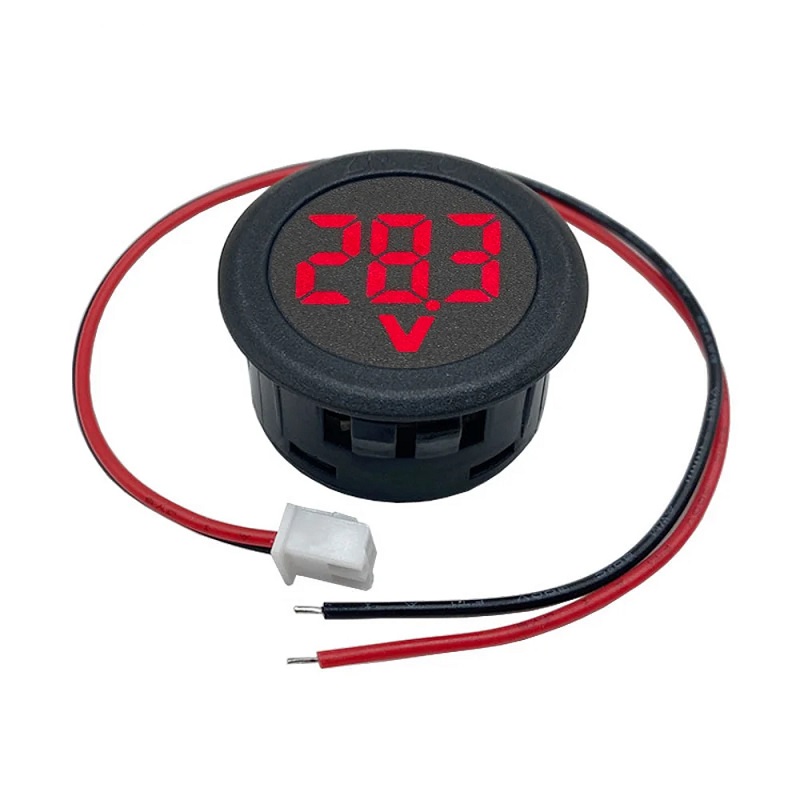

- Bright LED Display: Three-digit 7-segment LED for clear voltage readings
- Selectable Display Colors: Red, Green, or Blue for different visibility needs
- High Input Impedance: >100KΩ, minimizing power draw
- Operating Temperature: -10°C to 65°C, suitable for various environments
Wiring Instructions:
- Red Wire (+): Connect to positive voltage input (5V – 100V DC)
- Black Wire (-): Connect to negative (ground)
