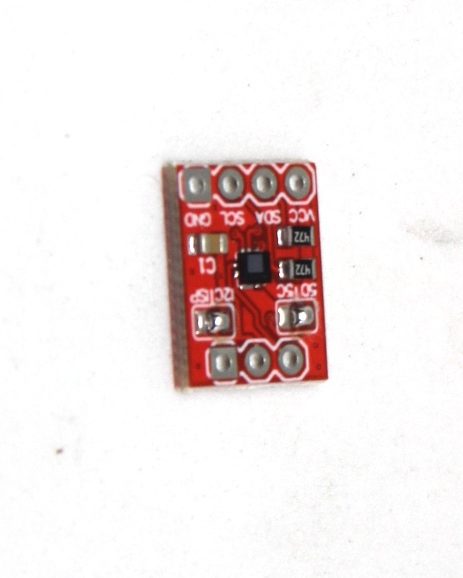

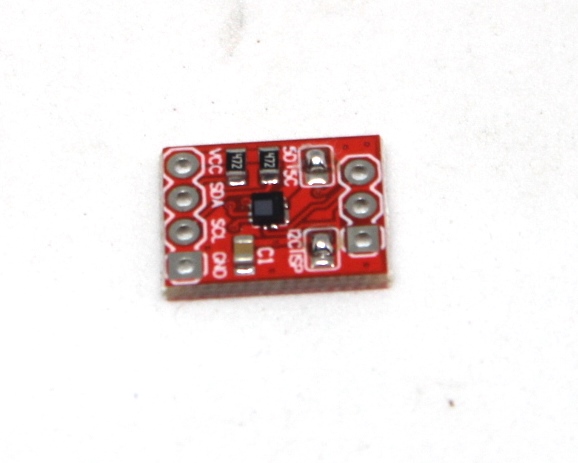

LPS22HB Atmospheric pressure sensor module
This content will be shared across all product pages.
Description:
The LPS22HB Atmospheric Pressure Sensor Module is a high-performance sensor designed to measure atmospheric pressure with precision. It is suitable for applications such as weather monitoring, altitude tracking, and pressure-based sensing systems.
Key Features:
- High Precision: Accurate atmospheric pressure measurements
- Low Power Consumption: Efficient for battery-operated devices
- Compact Design: Small form factor for easy integration
- Digital Output: Provides data via I2C or SPI interface
- Temperature Compensation: Corrects for temperature variations
- Sensor: LPS22HB
- Measurement Range: 260 hPa to 1260 hPa
- Operating Voltage: 1.7V to 3.6V DC
- Interface: I2C or SPI
- Current Consumption: Low current draw
- Temperature Compensation: Integrated temperature compensation
- Weather Stations: Measure atmospheric pressure for weather forecasting
- Altitude Tracking: Monitor altitude changes based on pressure variations
- Environmental Monitoring: Integrate into systems for environmental data collection
- Consumer Electronics: Use in devices requiring pressure or altitude measurement
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
