Description:

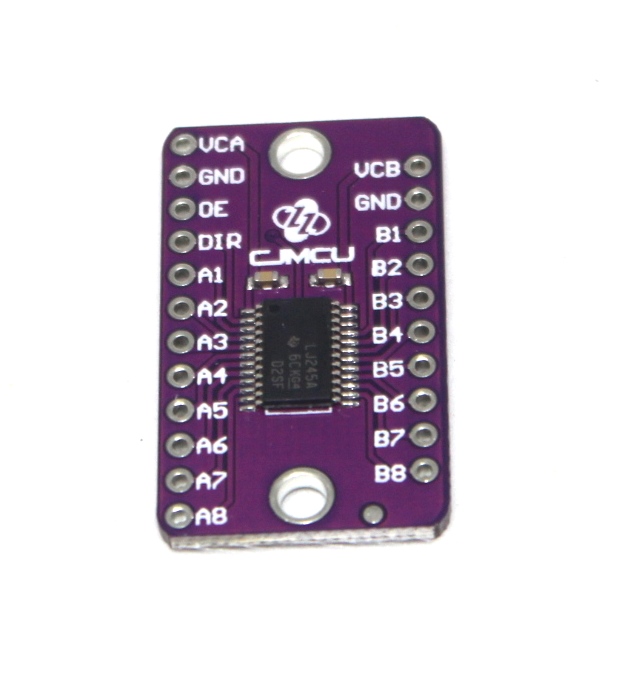

The SN74LVC4245A LJ245A Octal Bus Transceiver Shifter Board is designed for bidirectional voltage-level translation and signal buffering. It is capable of interfacing between different logic levels, making it an ideal choice for mixed-voltage systems. This module supports 8-bit data bus communication and provides efficient signal transmission and reception.
Key Features:
- 8-Bit Bidirectional Transceiver: Enables data transfer between buses
- Voltage-Level Shifting: Interfaces between different logic levels (e.g., 5.5V on A port and 2.7V to 3.6V on B port)
- High-Speed Operation: Ensures fast data transfer rates
- Direction Control: Selects the direction of data flow
- Compact Design: Easy to integrate into various applications
- Operating Voltage: 4.5V to 5.5V (A port), 2.7V to 3.6V (B port)
- Bus Width: 8-bit
- Data Rate: Up to 100 Mbps
- Input/Output Type: 3-state
- Operating Temperature Range: -40°C to +85°C
- Dimensions: Compact board size suitable for integration
- Mixed-Voltage Systems: Interfaces between different logic level circuits
- Microcontroller Interfacing: Connects microcontrollers with peripherals operating at different voltages
- Signal Buffering: Enhances signal integrity over long distances
- Embedded Systems: Used in various embedded applications for reliable data communication
