Description:
The XH-M131 LDR Module with Switching Relay is a highly versatile light-dependent resistor (LDR) module designed for automatic light control applications. This module can detect light intensity and activate a relay switch based on predefined light levels, making it ideal for projects requiring automated lighting control. Key Features:
Automatic Light Control: Uses an LDR to sense light intensity and control a relay.
Adjustable Sensitivity: Potentiometer allows fine-tuning of light sensitivity.
Relay Output: Can switch AC or DC loads up to 10A.
Indicator LEDs: Includes power and relay status LEDs for easy status monitoring.
Compact Design: Easy to integrate into various projects and applications.
Technical Specifications:
Operating Voltage: 12V DC
Relay Output: 250V AC 10A or 30V DC 10A
Light Sensor: LDR (Light Dependent Resistor)
Sensitivity Adjustment: Via onboard potentiometer
Indicator LEDs: Power and relay status
Module Dimensions: Compact size for easy integration
Weight: Lightweight for minimal impact on device performance
Applications:
Automatic Lighting: Control street lights, garden lights, or home lighting systems.
Security Systems: Use in security systems to activate lights in response to changing light conditions.
Solar Applications: Control solar-powered devices based on light intensity.
DIY Projects: Ideal for hobbyists and DIY electronics projects involving automated light control.

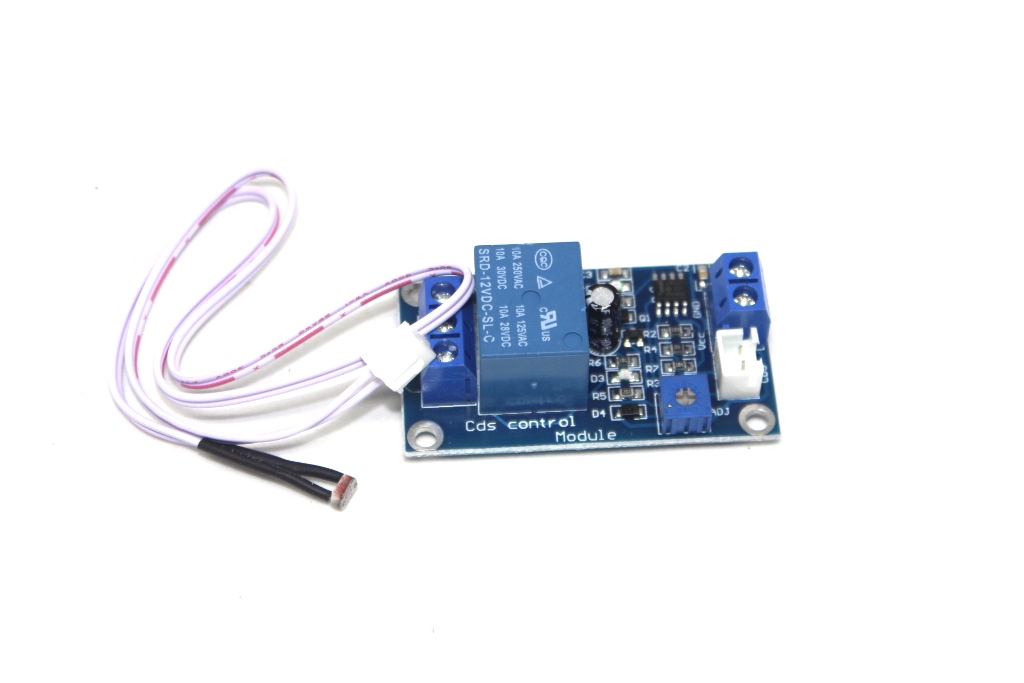

XH-M131 LDR module with switching relay
₦ 3,300.00
