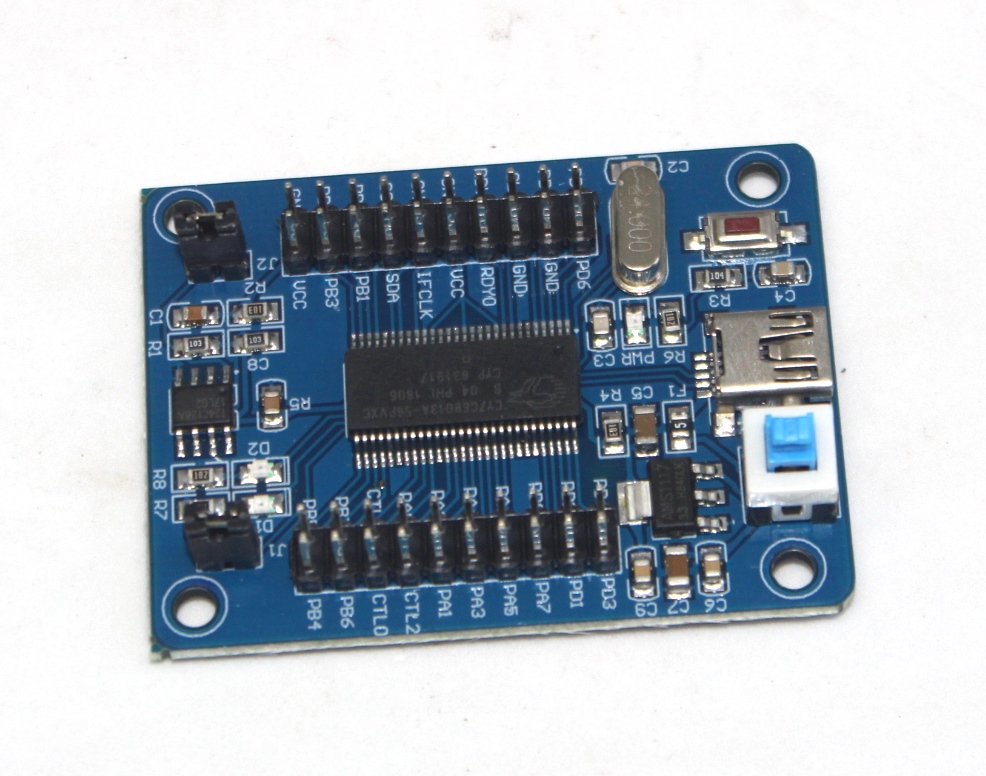

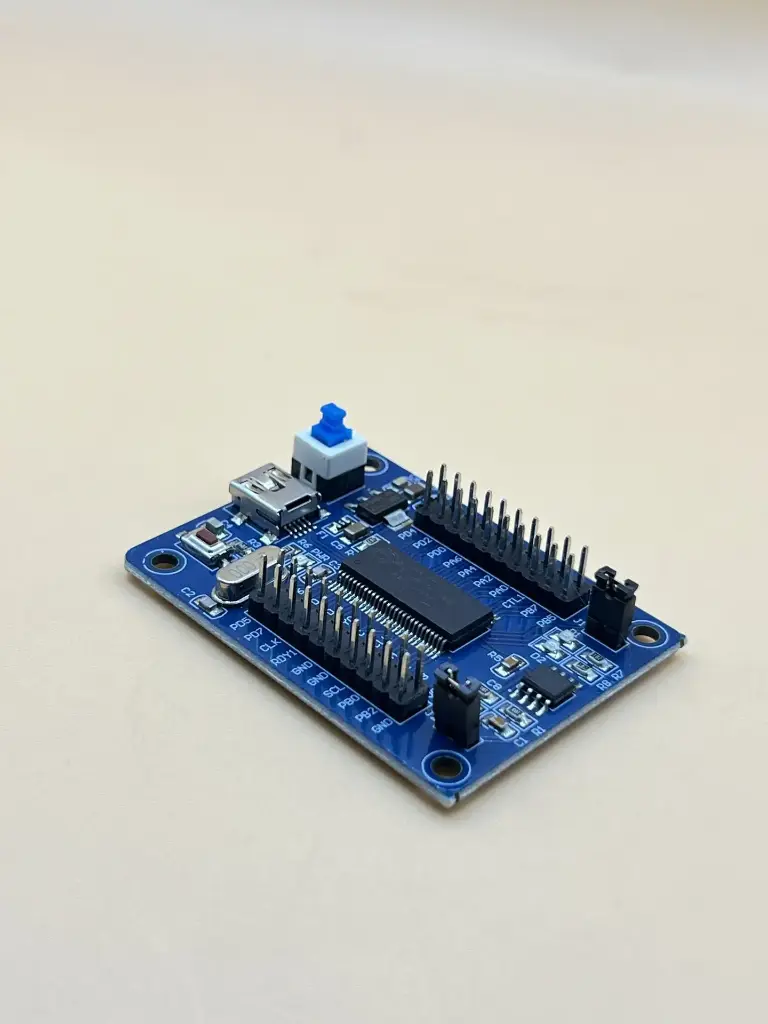

CY7C68013A USB Logic Analyzer Development Board
Description:
The CY7C68013A USB Logic Analyzer Development Board features the CY7C68013A microcontroller, providing a robust platform for developing and testing USB-based logic analyzer applications. This development board offers a flexible solution for engineers and developers looking to analyze digital signals with high precision.
Key Features:
- Microcontroller: CY7C68013A
- USB Interface: High-speed USB 2.0 connectivity for data transfer
- Logic Analyzer Capabilities: Capable of capturing and analyzing digital signals with precise timing
- Configurable I/O Pins: Supports various digital signal inputs and outputs
- Development Support: Compatible with various development tools and software
- Onboard Debugging: Integrated debugging interface for efficient development and troubleshooting
- Microcontroller: CY7C68013A
- USB Type: USB 2.0
- Operating Voltage: 5V DC
- I/O Pins: Configurable digital inputs and outputs
- Dimensions: Compact board size for ease of integration
- Weight: Lightweight for easy handling
- Logic Analysis: Analyzing digital signals for various applications
- Embedded System Development: Developing and debugging USB-based embedded systems
- Signal Testing: Testing and validating digital signal integrity
- Educational Purposes: Useful for learning and experimenting with digital electronics and USB interfacing
