Description

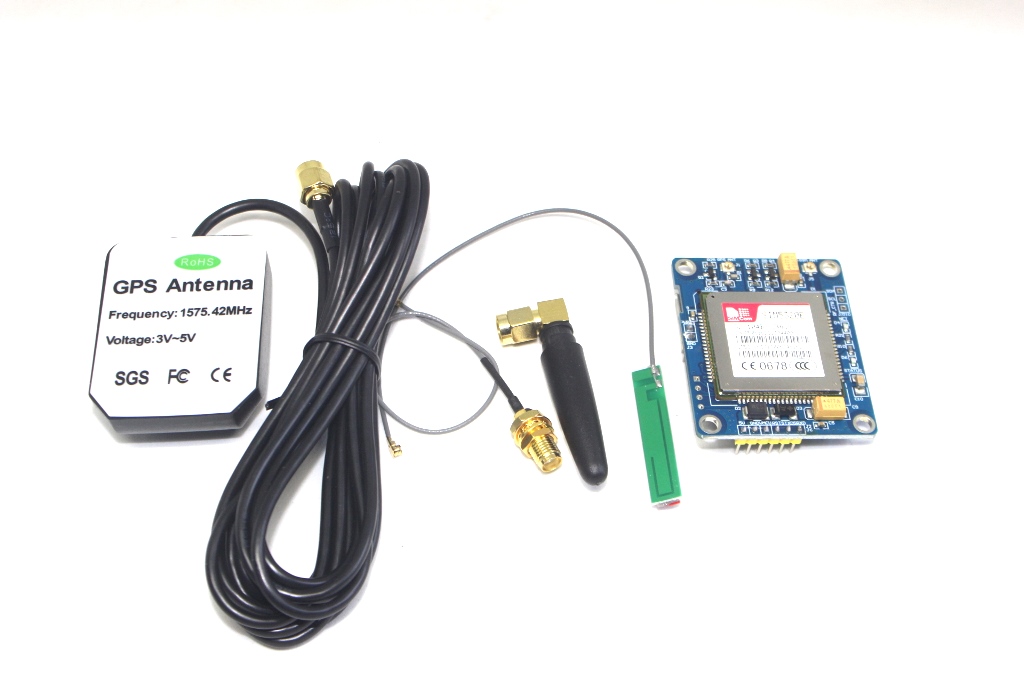

The SIM5320E is a versatile 3G GSM/GPRS GPS SMS module that delivers reliable wireless connectivity for a wide range of applications. Combining 3G, GSM, GPRS, and GPS functionalities in a compact form factor, it supports mobile communication, location tracking, and messaging services. With global frequency compatibility, efficient power usage, and standard interfaces, the SIM5320E is ideal for IoT devices, telematics, wearable tech, and remote monitoring systems.
Key Features
- 3G GSM/GPRS Connectivity: Reliable mobile communication with high-speed data transfer
- GPS Functionality: Accurate location tracking and navigation support, including A-GPS
- SMS Support: Send and receive text messages in text or PDU mode
- Wide Frequency Support: Compatible with multiple frequency bands for global use
- Low Power Consumption: Efficient operation for extended battery life in portable applications
- Compact Design: Small form factor for easy integration into devices and projects
- Standard Interfaces: UART and USB for seamless communication with microcontrollers and computers
Specification
- Cellular Network Support:
- 3G HSPA/WCDMA: 900/2100 MHz
- 2G GSM/GPRS: 850/900/1800/1900 MHz
- GPS: Standalone GPS and A-GPS support, fast and accurate positioning
- Data Rates:
- HSPA: Uplink up to 5.76 Mbps, Downlink up to 7.2 Mbps
- GPRS: Uplink and Downlink up to 85.6 kbps
- SMS: Text and PDU mode
- Interfaces: UART, USB 2.0
- Operating Voltage: 3.4V – 4.2V DC
- Dimensions: Compact module size for easy integration
- Weight: Lightweight, minimal impact on device design
Application
- IoT Devices: Mobile connectivity and GPS tracking for connected devices
- Telematics: Vehicle tracking and fleet management systems
- Remote Monitoring: Data collection and monitoring in industrial or environmental applications
- Wearable Devices: Location tracking and communication in smart wearables
- Security Systems: GPS positioning and SMS alerts for surveillance and security.
Datasheet:
For detailed technical information and specifications, please refer to the SIM5320E 3G GSM GPRS GPS SMS Module Datasheet.
