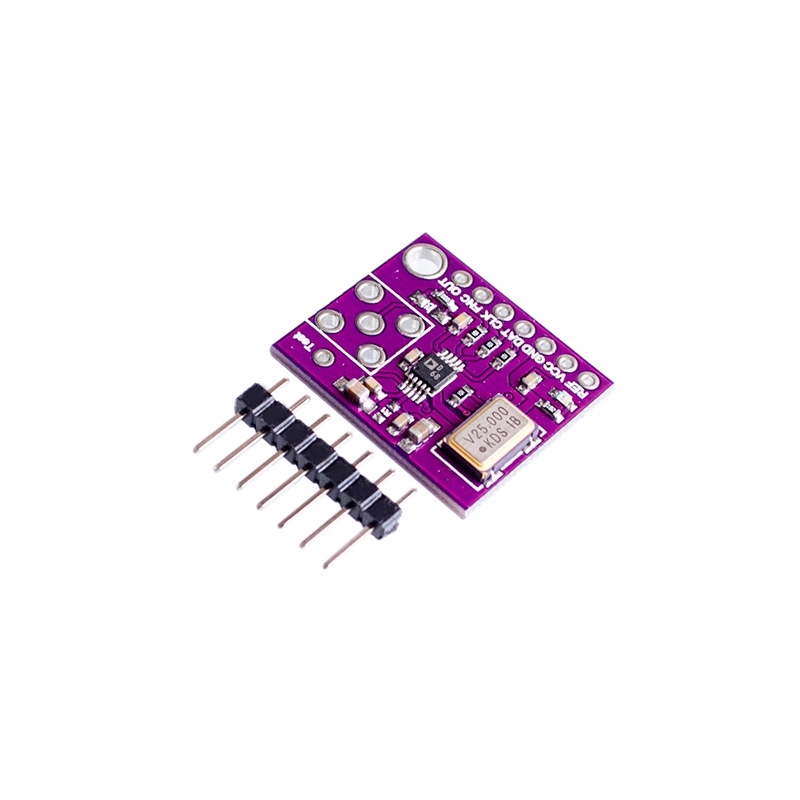

MCU-9833 AD9833 AD9833BRMZ sine Wave Square Wave Triangle Module
Description:
The MCU-9833 AD9833BRMZ Waveform Generator Module is a versatile signal generation module that uses the AD9833 IC to produce sine, square, and triangle waveforms. It is ideal for applications in signal processing, function generation, and waveform synthesis. This module is suitable for various electronic projects and educational purposes.
Key Features:
- Versatile waveform generation: Capable of producing sine, square, and triangle waveforms.
- Wide frequency range: Generates frequencies up to 12.5 MHz.
- High precision: Utilizes the AD9833 IC for accurate waveform generation.
- Low power consumption: Efficient design for energy-saving applications.
- SPI interface: Easy integration with microcontrollers and development boards.
- Compact size: Small form factor for easy incorporation into projects.
- IC: AD9833BRMZ
- Frequency Range: Up to 12.5 MHz
- Waveforms: Sine, square, and triangle
- Interface: SPI
- Power Supply: Typically 2.3V to 5.5V DC
- Current Consumption: Low power consumption (refer to datasheet for specific values)
- Dimensions: Compact module size (refer to datasheet for exact dimensions)
- Weight: Lightweight design
- Signal processing: Used in systems requiring precise waveform generation.
- Function generators: Ideal for creating customizable function generators.
- Educational purposes: Suitable for teaching and learning about waveform synthesis.
- Audio signal generation: Produces audio frequency signals for testing and development.
- Communication systems: Used in various communication applications requiring waveform generation.
