Description

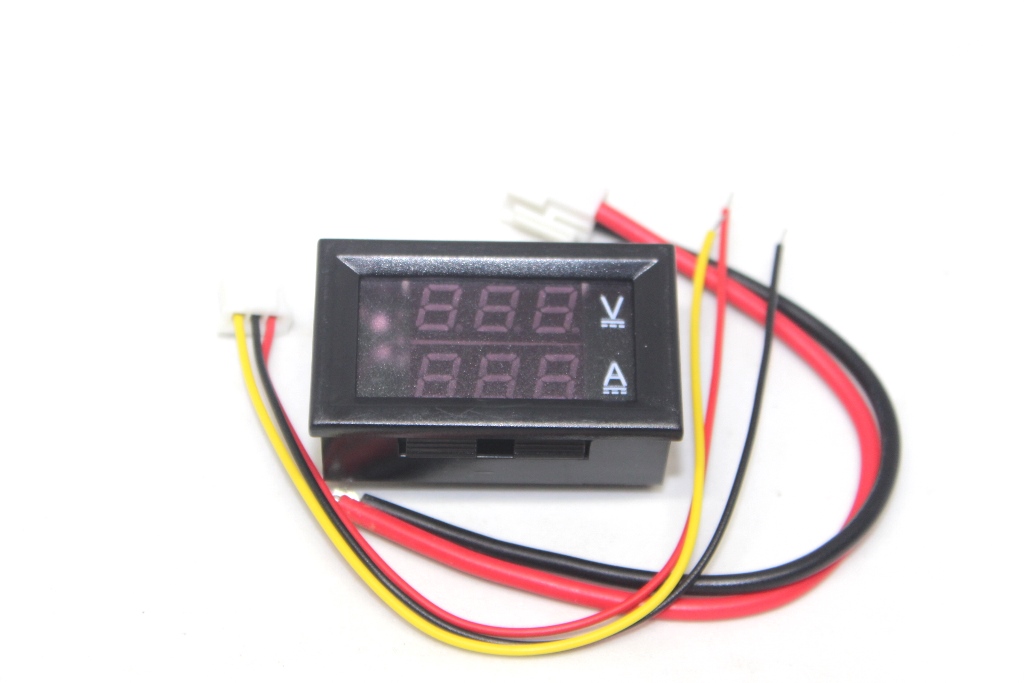

The DC 0–100V 10A Voltage and Current Meter Display is a compact digital measuring module designed to accurately monitor DC voltage and current simultaneously. It features a bright LED display that provides clear, real-time readings, making it ideal for power supplies, battery systems, solar setups, and electronic projects.
Key Features
- Simultaneous DC voltage and current measurement
- Wide voltage measurement range from 0 to 100V DC
- Current measurement up to 10A DC
- Bright LED display for clear and easy reading
- Compact panel-mount design
- Simple wiring and installation
- High measurement accuracy
- Low power consumption for continuous operation
Specification
- Voltage measurement range: 0–100V DC
- Current measurement range: 0–10A DC
- Display type: LED digital display
- Display color: Red (varies by model)
- Measurement accuracy: ±1% (typical)
- Meter operating voltage: 4.5V – 30V DC
- Measurement type: DC only
- Form factor: Panel mount
- Weight: Lightweight and portable
Application
- Power supply output monitoring
- Battery charging and discharging systems
- Solar power and inverter systems
- Automotive electrical diagnostics
- DIY electronics and laboratory projects
- Industrial and educational use
Notes
- Designed for DC circuits only
- External shunt may be required for high-current accuracy
- Ensure correct wiring to avoid damage to the meter
Datasheet: For detailed technical information and specifications, please refer to the DC 0-100V 10A Voltage and Current Meter Display datasheet.
