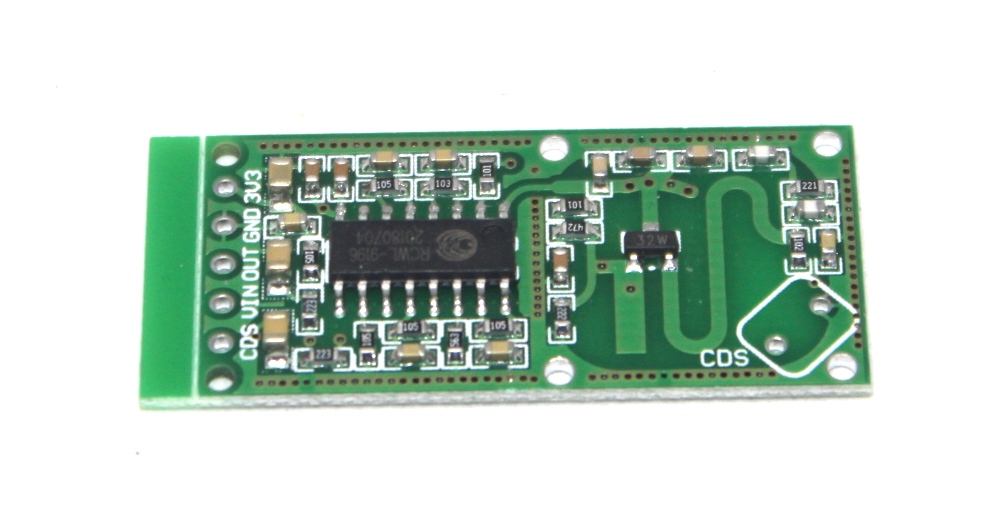

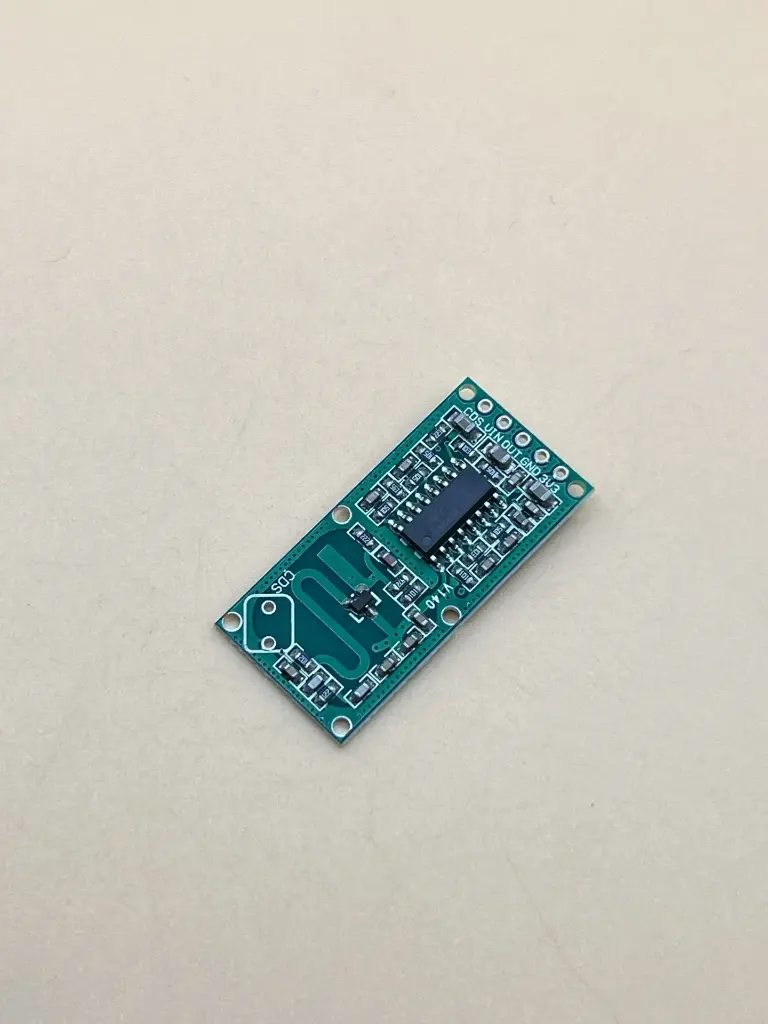

RCWL-0516 PIR microwave radar human body sensor module
Description:
The RCWL-0516 PIR Microwave Radar Human Body Sensor Module is a powerful and versatile sensor designed for motion detection. Unlike traditional PIR sensors, this module uses microwave radar technology to detect human presence and movement, providing greater sensitivity and wider detection range. It is ideal for use in security systems, automatic lighting, and various automation projects.
Key Features:
- Microwave radar technology: Provides superior sensitivity and detection range compared to traditional PIR sensors.
- Non-contact detection: Senses motion through walls, glass, and other materials.
- Wide detection range: Typically covers up to 7 meters (refer to datasheet for exact range).
- Adjustable delay time and sensitivity: Allows customization for specific applications.
- Low power consumption: Suitable for battery-powered projects.
- Simple interface: Easy to integrate with microcontrollers and development boards.
- Compact design: Fits easily into various projects and applications.
- Operating Voltage: 4V to 28V DC
- Operating Current: ~3mA
- Detection Distance: Up to 7 meters (refer to datasheet for exact specifications)
- Output: Digital high/low signal
- Delay Time: Adjustable from 2 to 280 seconds
- Sensitivity: Adjustable
- Dimensions: Compact module size for easy integration
- Weight: Lightweight design
- Security systems: Motion detection for alarm systems.
- Automatic lighting: Activates lights upon detecting human presence.
- Home automation: Integrates into smart home systems for enhanced functionality.
- Energy saving: Controls appliances and lighting to reduce energy consumption.
- Industrial automation: Detects human presence in automated environments.
