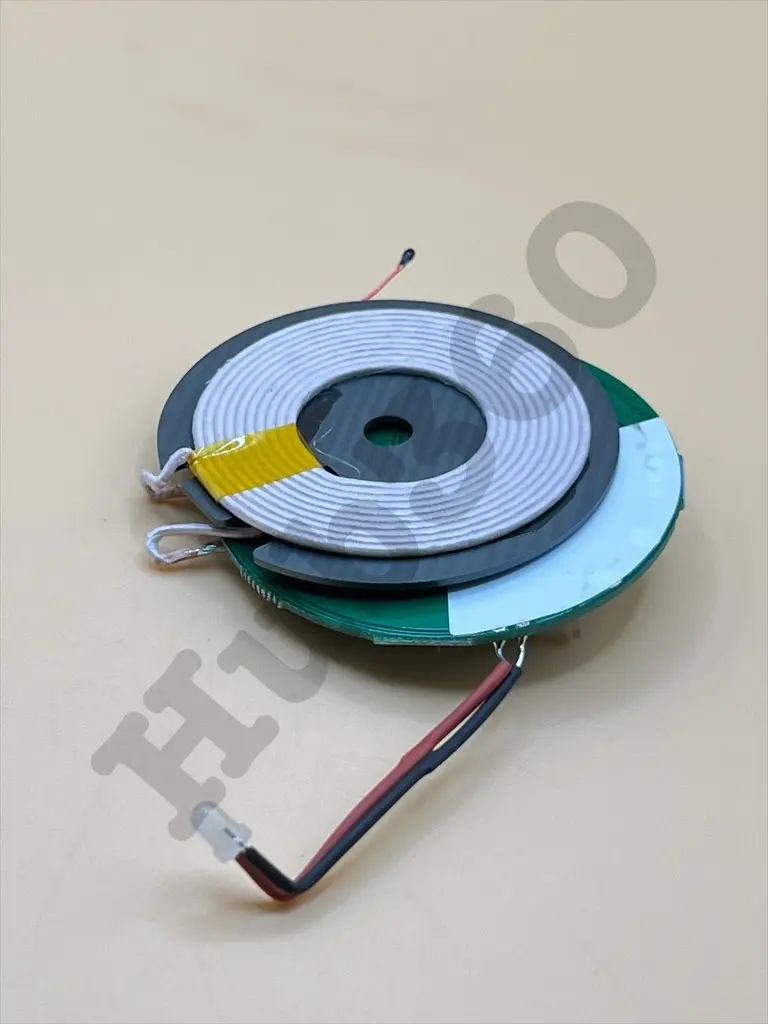

5V 1A smartphone wireless charger module
Description:

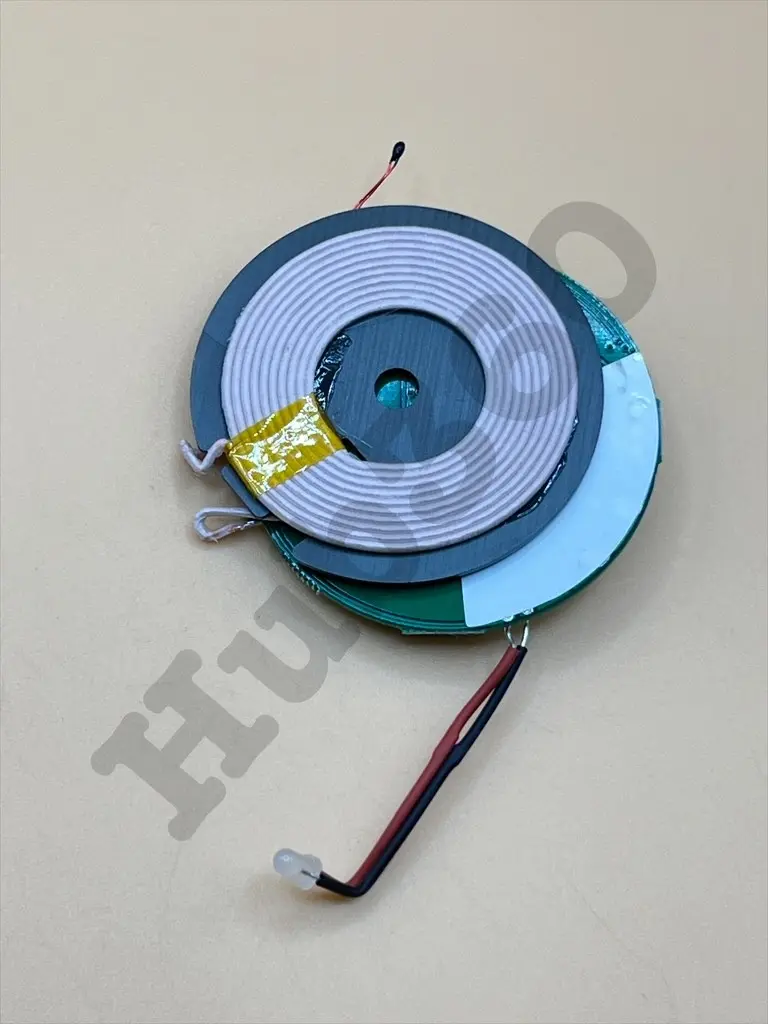

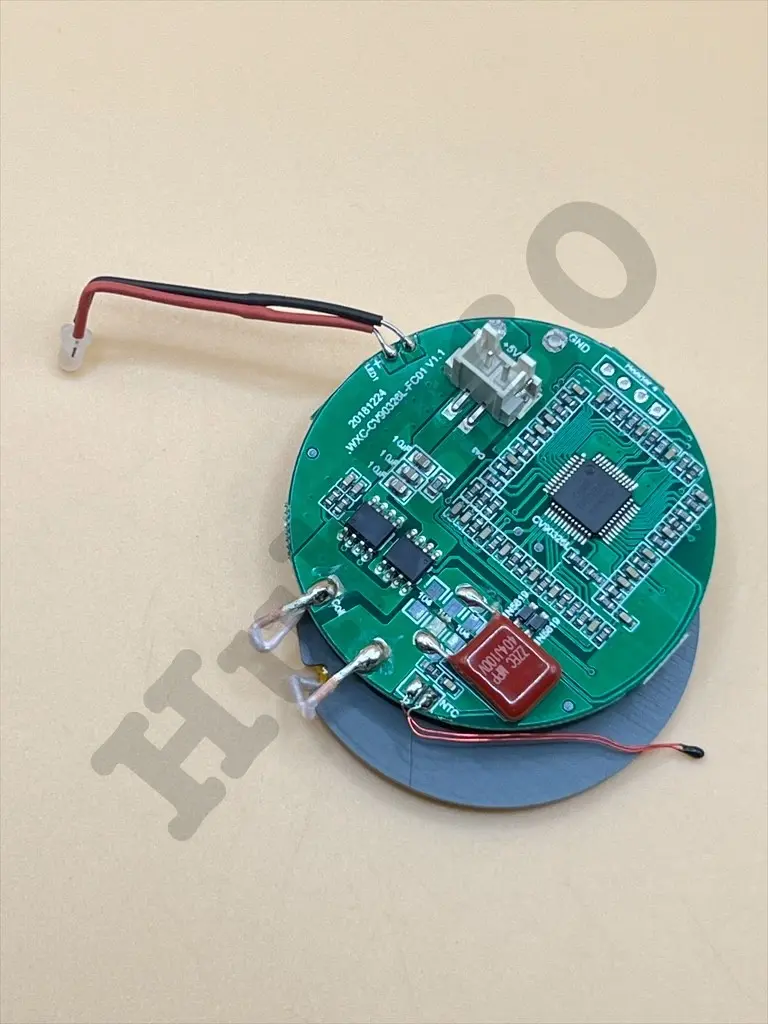

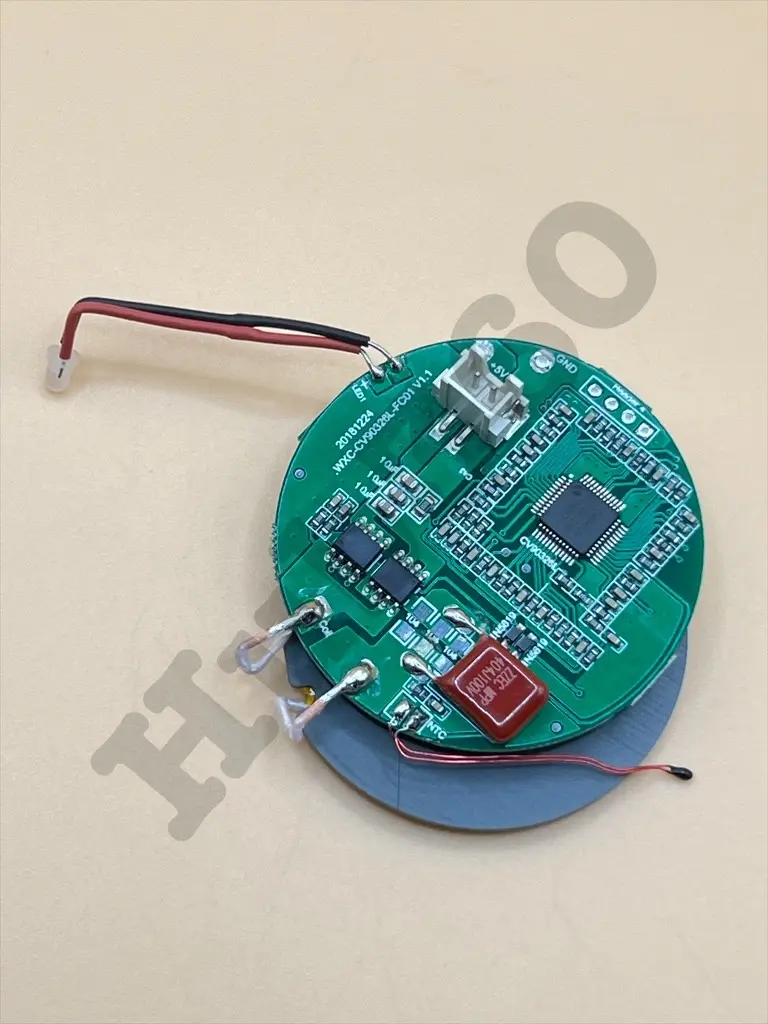

A compact circuit board enabling wireless charging for Qi-compatible smartphones and devices using inductive charging technology. Transfers power wirelessly over short distances.
Key Features:
- Enables Qi-standard wireless charging.
- Compact design for various projects or mobile charging solutions.
- Operates on standard 5V DC power (often via USB).
- Delivers up to 5W of wireless charging power (limited by 1A input current).
- Frequently includes LED indicators for power and charging status.
- May offer foreign object detection (FOD) for safety.
Technical SpecificationsÂ
- Input Voltage: Typically 5V DC (exact range varies)
- Input Current: Typically 1A (limits output power to 5W)
- Output Power: Up to 5W (wireless)
- Operating Frequency: Typically 110-205 kHz
- Transmission Distance: Usually between 2mm and 8mm
Applications:
- Building custom wireless charging stations or integrating wireless charging into furniture/objects (DIY).
- Upgrading wired chargers to offer wireless charging functionality (DIY projects).
- Educational tool for learning about wireless charging technology and inductive coupling.
