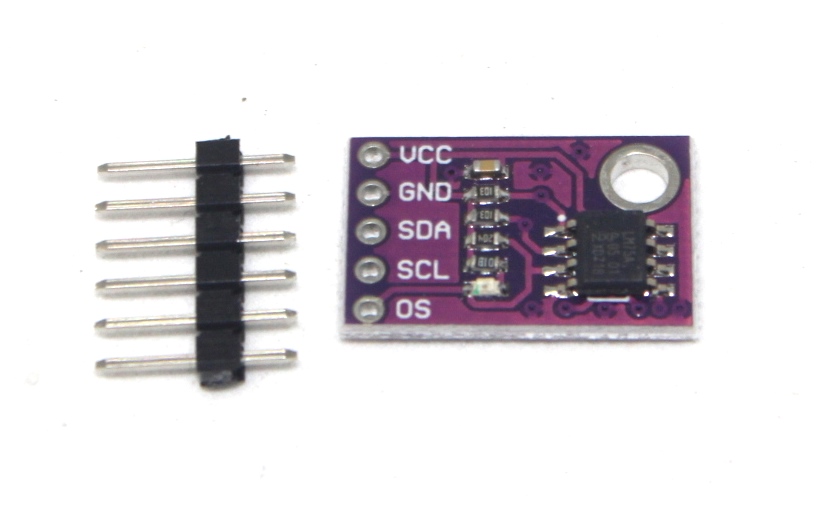

LM75 temperature sensor module
Description:
The LM75 Temperature Sensor Module utilizes the LM75A digital temperature sensor, offering precise temperature measurement capabilities for various applications. This module simplifies temperature monitoring tasks with its integrated digital interface, making it suitable for use in electronic devices, environmental monitoring systems, and industrial equipment where accurate temperature sensing is crucial.
Key Features:
- Digital temperature sensor based on the LM75A IC
- Measures temperature with ±2°C accuracy over a range of -55°C to +125°C
- I2C interface for easy integration with microcontrollers and systems
- Programmable resolution: 9 to 12 bits
- Shutdown mode for reduced power consumption
- Onboard pull-up resistors for I2C bus compatibility
- Compact module size for flexible installation
- Sensor IC: LM75A
- Temperature Range: -55°C to +125°C
- Accuracy: ±2°C (maximum)
- Resolution: Programmable from 9 to 12 bits
- Supply Voltage: 2.8V to 5.5V
- Interface: I2C (Address selection via ADDR pin)
- Operating Current: 1.4 mA (typical)
- Dimensions: Compact module size for easy integration
- Weight: Lightweight for portability
- Temperature monitoring in electronic devices and systems
- Environmental monitoring and control
- Industrial automation and process control
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Thermal management in consumer electronics
