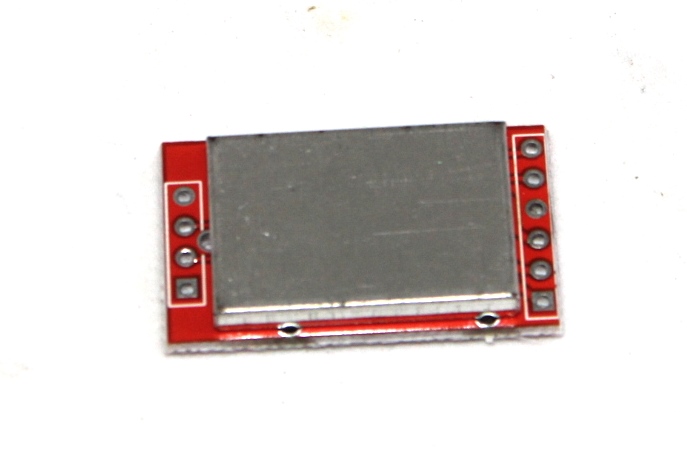

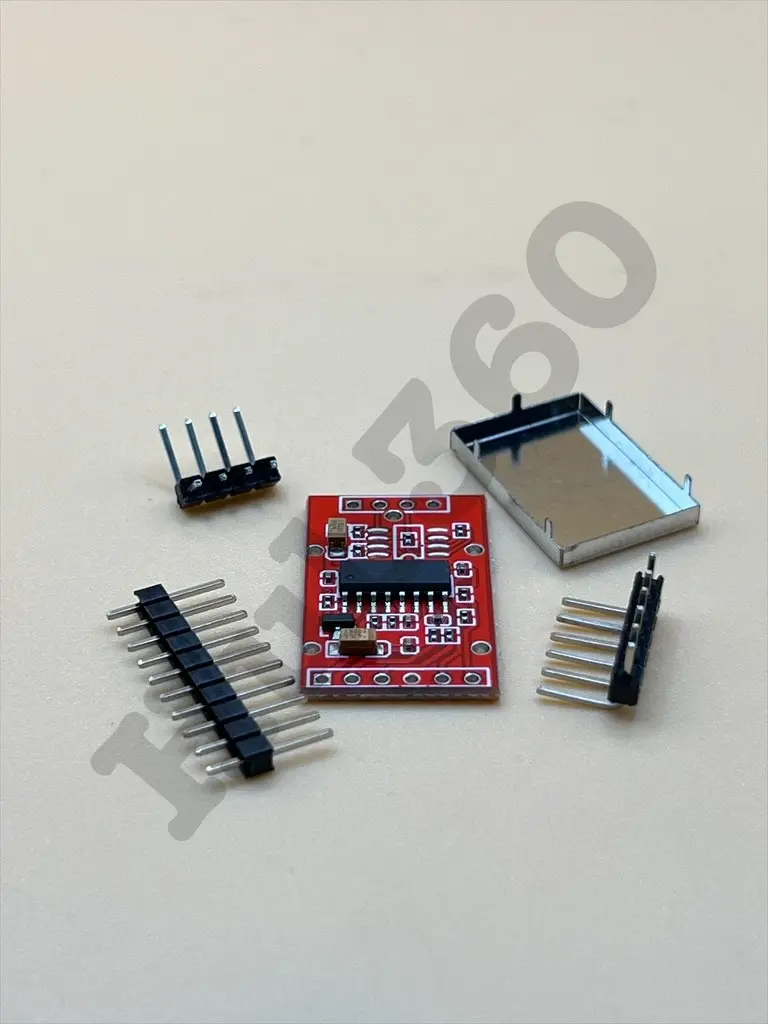

HX711 load cell 24bit ADC with shield
Description: The HX711 Load Cell 24-bit ADC with Shield is a precision sensor module designed for weight measurement applications. It integrates the HX711 24-bit analog-to-digital converter (ADC) with a load cell amplifier, providing high-resolution measurements from load cells. This module is ideal for applications such as digital scales, industrial weighing systems, and force measurement devices. The shield makes it easy to interface with microcontrollers like Arduino, ensuring accurate and stable weight readings.
Key Features:
- High-resolution 24-bit ADC for precise weight measurements
- Integrated load cell amplifier
- Compatible with most load cells (strain gauge sensors)
- Easy-to-use interface with microcontrollers
- Low noise and high stability
- Two selectable differential input channels
- Onboard voltage regulator for stable power supply
- Compact and easy to integrate with Arduino shields
- ADC Resolution: 24-bit
- Input Voltage: 2.6V to 5.5V
- Operating Voltage: 5V (Arduino compatible)
- Current Consumption: < 1.5mA
- Common Mode Input Range: GND to VCC
- Differential Input Range: ±40mV (gain = 128)
- Gain Options: 32, 64, 128 (default)
- Data Rate: 10 Hz or 80 Hz
- Dimensions: Compatible with Arduino shield form factor
- Weight: 10 g
- Digital scales for household and industrial use
- Weighing systems in manufacturing processes
- Force measurement in mechanical testing
- Load measurement in robotics and automation
- DIY projects and educational prototypes requiring weight sensing
