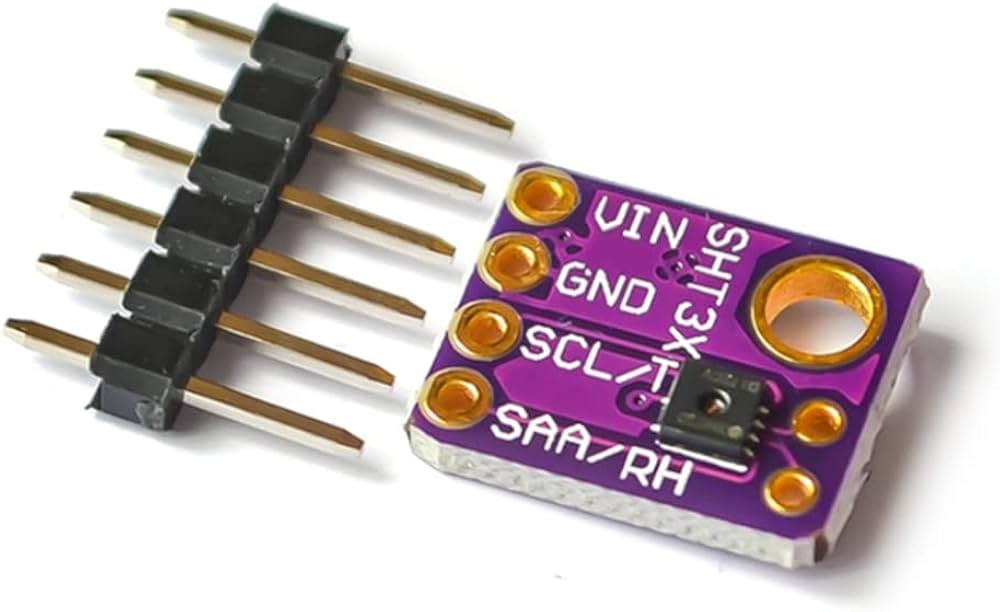

GY-SHT30-D Digital Temperature & Humidity Sensor (I2C, High Precision)
Key Features:
- High-Accuracy Measurement:
- Temperature Range: -40°C to 125°C, ±0.2°C accuracy
- Humidity Range: 0 – 100% RH, ±1.8% accuracy
- I2C Communication: Simple two-wire interface for easy integration
- Low Power Consumption: Operates on 2.4V – 5.5V, suitable for battery-powered devices
- Compact Design: Easy to mount on embedded systems
- Stable & Reliable: Fast response time and long-term stability
Technical Specifications:
- Model: GY-SHT30-D
- Operating Voltage: 2.4V – 5.5V
- Temperature Accuracy: ±0.2°C (typical)
- Humidity Accuracy: ±1.8% RH
- Interface: I2C (0x44 or 0x45 selectable)
- Size: Compact PCB design for easy integration
