Description

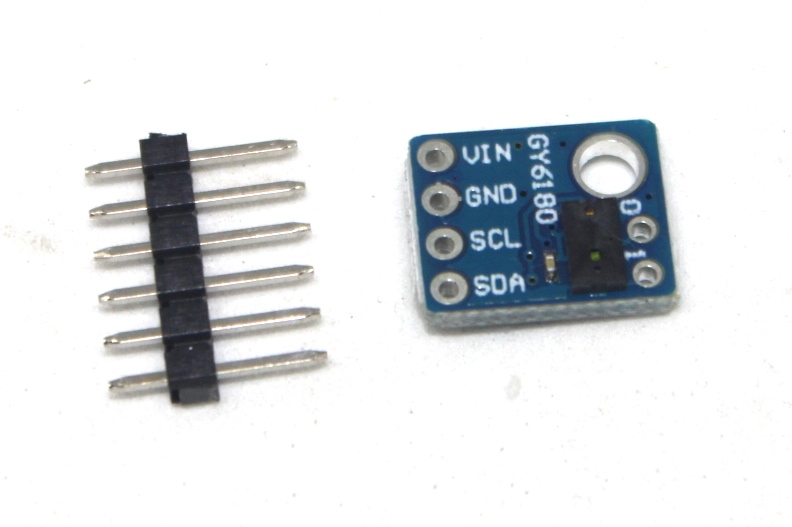

The VL6180X Time-of-Flight (ToF) Sensor Module is an advanced proximity and ambient light sensor based on ST’s FlightSense™ technology. Unlike traditional sensors that rely on reflected light intensity, the VL6180X measures actual distance using light travel time, ensuring accurate readings regardless of object color or surface. This compact 3-in-1 optical module integrates a proximity sensor, ambient light sensor (ALS), and IR VCSEL emitter, making it ideal for space-constrained and low-power applications. It offers reliable short-range distance measurement and precise light sensing, with easy integration via an I2C interface.
Key Features:
- Time-of-Flight (ToF) Distance Measurement for accurate sensing
- 3-in-1 Sensor Module (Proximity + Ambient Light + IR Emitter)
- Distance Range: 0 to 100mm+ (typical up to 10cm)
- Independent of Object Reflectance (color and surface)
- Built-in Ambient Light Sensor with lux output
- Low Power Consumption for battery-powered devices
- I2C Interface for easy communication
- Programmable GPIO Interrupts
- Compact, Ready-to-Use Module
- Supports Gesture Recognition
Technical Specifications
- Sensor Type: Time-of-Flight (ToF)
- Model: VL6180X
- Distance Range: 0 – 100mm (typical), up to ~200mm (conditions dependent)
- Light Source: Integrated IR VCSEL
- Ambient Light Sensor: Yes (lux output)
- Interface: I2C
- Operating Voltage: Typically 2.8V – 3.3V
- GPIO Pins: 2 programmable interrupt pins
- Power Consumption: Ultra-low power operation
- Measurement Mode: Continuous or single-shot
- Package Type: Integrated optical module
Applications:
- Robotics
- Gesture recognition
- Proximity sensing
- Object detection and avoidance
- DIY electronics projects
- Industrial automation
Datasheet:
For detailed technical information, please refer to the
VL6180X Datasheet
.
