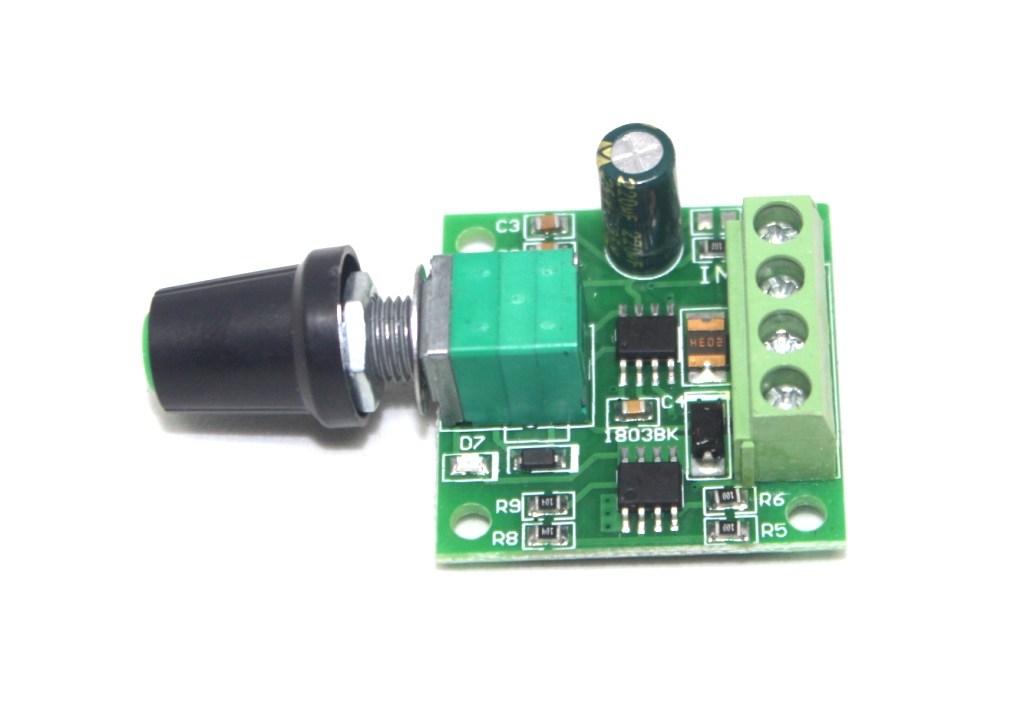

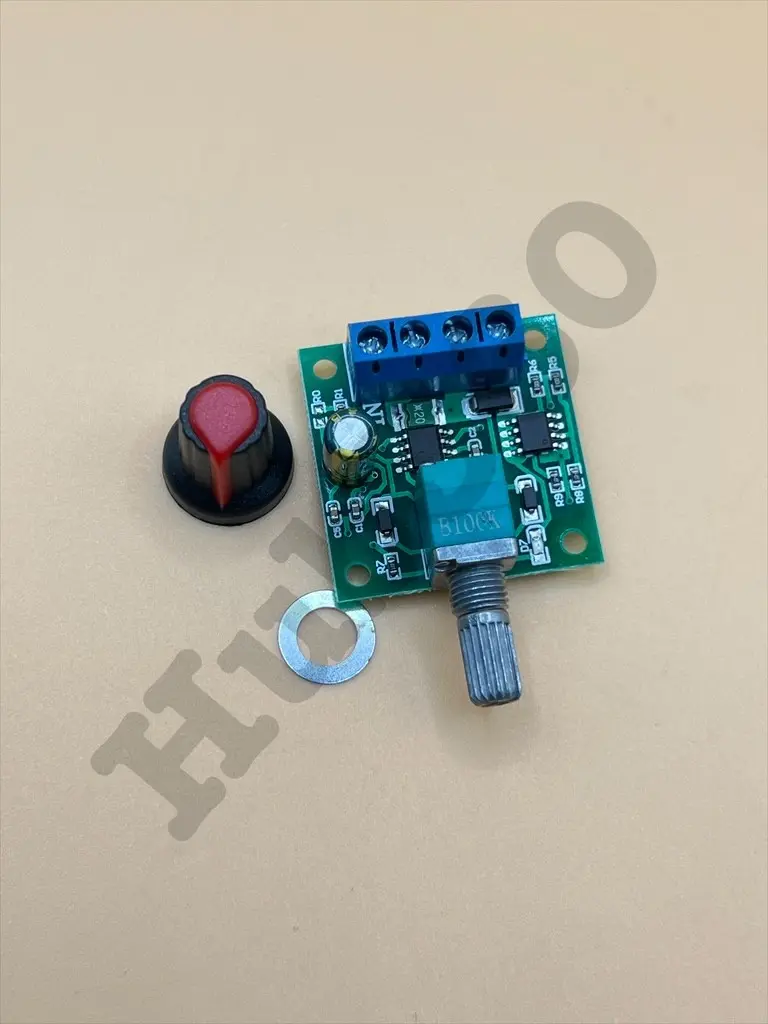

1803BK PWM DC motor governor
The 1803BK PWM DC Motor Governor is a versatile and efficient motor speed controller designed to regulate the speed of DC motors using Pulse Width Modulation (PWM) technology. This device is ideal for applications requiring precise speed control, such as electric fans, conveyor belts, and various DIY electronics projects. The 1803BK features an easy-to-use interface with a potentiometer for adjusting the motor speed and a robust design for reliable operation.
Key Features:
- PWM technology for efficient speed control
- Wide voltage input range: 1.8V to 15V DC
- Adjustable speed via potentiometer
- High power output: up to 2A continuous current
- Compact and easy to install
- Protection features: reverse polarity protection
- LED indicator for power status
- Operating Voltage: 1.8V to 15V DC
- Output Current: Up to 2A (continuous)
- Control Method: Potentiometer (knob)
- Frequency: 20kHz (PWM)
- DC motor speed control
- Electric fans
- Conveyor belts
- DIY electronics projects
- Robotics
