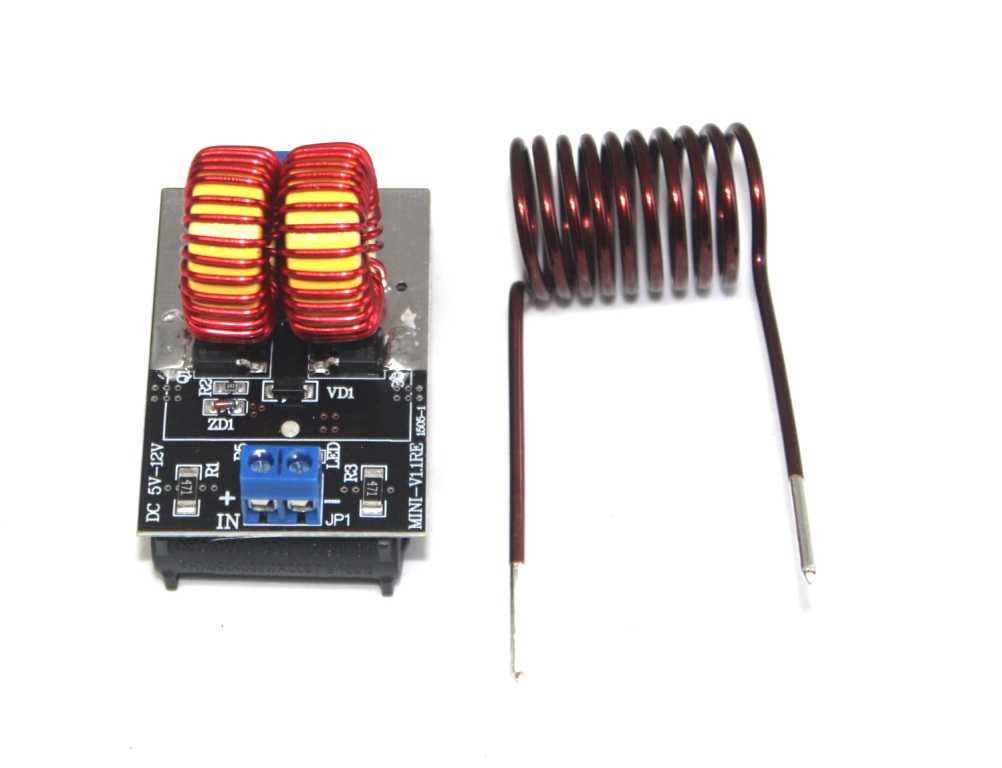

Mini ZVS Tesla Jacobs Ladder induction heating board
The Mini ZVS (Zero Voltage Switching) Tesla Jacobs Ladder Induction Heating Board is a compact and efficient device designed for induction heating applications. This board utilizes zero voltage switching technology to minimize power loss and enhance efficiency. It is capable of generating high-frequency electromagnetic fields for induction heating, making it ideal for applications such as metal heating, melting, and other high-temperature processes. The board is also popular for DIY Tesla coil and Jacobs ladder projects, providing a visually captivating high-voltage arc display.
Key Features:
- Zero voltage switching (ZVS) technology for high efficiency
- Compact design for easy integration
- Capable of generating high-frequency electromagnetic fields
- Suitable for induction heating and high-voltage arc displays
- Adjustable output power
- Overheat protection
- Easy-to-use input and output terminals
- High-quality components for reliability
- Input Voltage: 12V to 30V DC
- Input Current: 10A (max)
- Operating Frequency: 30kHz to 100kHz
- Output Power: Up to 120W
- Cooling: Requires external cooling (e.g., heat sink, fan)
- Protection: Overheat protection
- Induction heating
- Metal melting
- DIY Tesla coil projects
- Jacobs ladder projects
- High-temperature processing
- Scientific experiments
