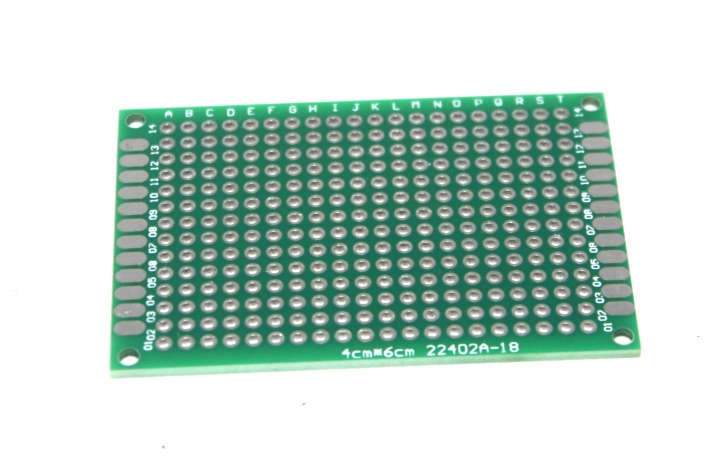

4cmx6cm double sided fiberglass PCB veroboard/stripboard
This content will be shared across all product pages.
The 4cm x 6cm double-sided fiberglass PCB veroboard/stripboard is a compact and versatile prototyping board used for soldering electronic components and creating custom circuits. It features copper tracks on both sides of a fiberglass substrate, providing flexibility in circuit design and component placement. This board type is suitable for various electronics projects, from hobbyist experimentation to small-scale production of custom PCBs.
Key Features:
- Double-sided copper-clad fiberglass board
- Suitable for through-hole component soldering
- Ideal for prototyping and experimenting with circuit designs
- Provides easy tracing and modification of connections
- Durable and reusable for multiple projects
- Standard hole spacing for compatibility with most components
- Allows for both horizontal and vertical wiring configurations
- Material: Fiberglass substrate with copper-clad layers
- Board Size: 4cm x 6cm (40mm x 60mm)
- Copper Thickness: Standard 35µm (1oz)
- Hole Diameter: Standard 1mm (0.039")
- Hole Pitch: Standard 2.54mm (0.1")
- Surface Finish: Copper coated
- RoHS compliant: Yes
- Prototyping electronic circuits and systems
- Educational projects and workshops
- DIY electronics and hobbyist applications
- Small-scale production of custom PCBs
- Rapid prototyping before PCB fabrication
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
